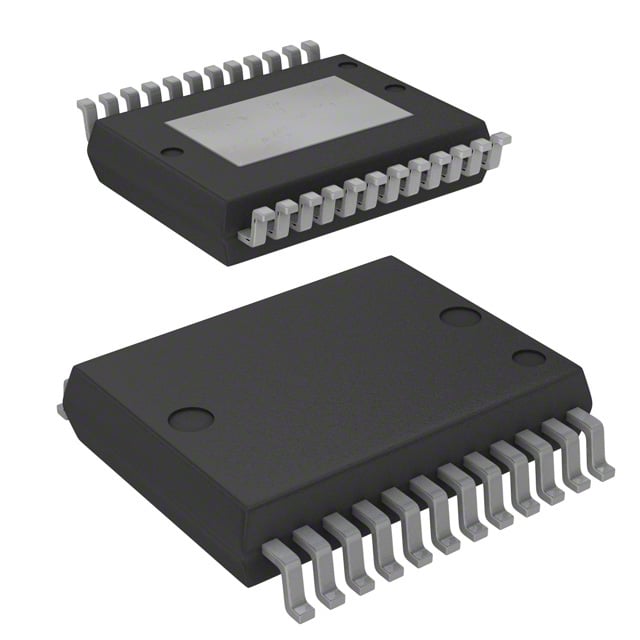

VNI4140K-32 ST Power Switch | PowerSSO-24 | 4-Channel, 40V, 1A

Product Overview

The VNI4140K-32 is a monolithic, four-channel high-side smart power switch manufactured by STMicroelectronics. It integrates control logic, protection features, and power MOSFETs in a single PowerSSO-24 package. Designed for driving resistive, inductive, and capacitive loads, it provides robust protection against overcurrent, overtemperature, and short-circuit conditions. The device operates from a 10V to 36V supply voltage and delivers up to 1A per channel (continuous) with a typical on-resistance of 400mΩ per channel. Its diagnostic feedback via open-drain outputs enables real-time monitoring of load status and fault conditions.

Detailed Technical Specifications

Key Features

• Four independent high-side switches with integrated power MOSFETs
• Low on-resistance (400mΩ) minimizes power dissipation
• Comprehensive protection: overcurrent, overtemperature, short-circuit, and undervoltage lockout
• Diagnostic feedback via open-drain outputs for each channel
• Wide supply voltage range (10V to 36V) suitable for automotive and industrial systems
• High operating temperature range (-40°C to +150°C)
• PowerSSO-24 package with exposed pad for enhanced thermal performance
• Compliant with automotive AEC-Q100 standard

Target Applications

• Automotive body control modules (e.g., door locks, window lifts, seat adjustment)
• Industrial PLC output stages for driving solenoids and relays
• 5G base station power distribution and load management
• Dashboard and infotainment system power control
• LED lighting modules in automotive and industrial environments
• General-purpose resistive, inductive, and capacitive load switching

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for VNI4140K-32. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

VNI4140K-32 是意法半導體（STMicroelectronics）生產的一款單片四通道高邊智能功率開關，將控制邏輯、保護功能和功率 MOSFET 集成在單一的 PowerSSO-24 封裝中。該器件專為驅動電阻性、電感性和電容性負載而設計，提供過流、過溫和短路保護。工作電源電壓範圍為 10V 至 36V，每通道連續輸出電流高達 1A，典型導通電阻為 400mΩ。通過開漏輸出診斷引腳，可實現負載狀態和故障條件的實時監控。

詳細技術參數

核心特性

• 四個獨立高邊開關，集成功率 MOSFET
• 低導通電阻 (400mΩ)，降低功耗
• 全面保護：過流、過溫、短路、欠壓鎖定
• 每通道開漏輸出診斷反饋
• 寬電源電壓範圍 (10V 至 36V)，適用於汽車和工業系統
• 高工作溫度範圍 (-40°C 至 +150°C)
• PowerSSO-24 封裝，帶裸露焊盤增強散熱性能
• 符合汽車 AEC-Q100 標準

典型應用場景

• 汽車車身控制模塊（如門鎖、車窗升降、座椅調節）
• 工業 PLC 輸出級，驅動電磁閥和繼電器
• 5G 基站配電和負載管理
• 儀表盤和信息娛樂系統電源控制
• 汽車和工業環境中的 LED 照明模塊
• 通用電阻性、電感性和電容性負載開關

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 VNI4140K-32 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
