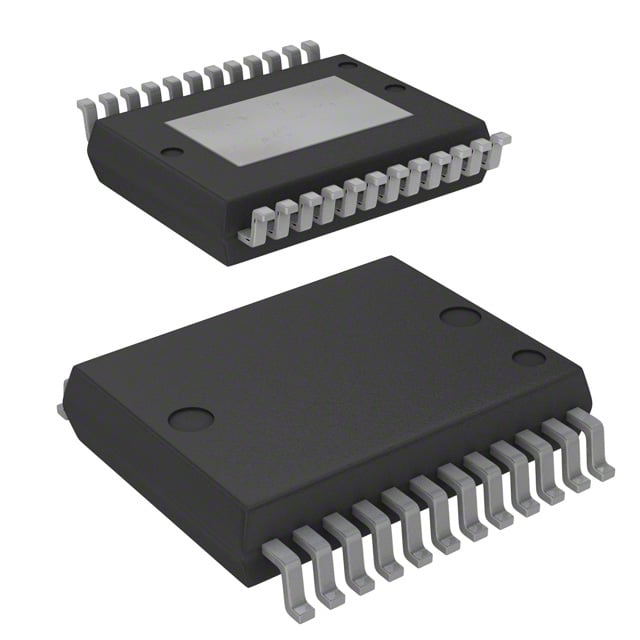

VNQ5050AKTR-E ST Automotive Quad High-Side Driver | PowerSSO-24 | 50mOhm, 5A

Product Overview

The VNQ5050AKTR-E is a monolithic quad high-side driver manufactured by STMicroelectronics, designed for automotive and industrial applications. It integrates four 50mOhm (typical) N-channel power MOSFETs with advanced protection features in a compact PowerSSO-24 package. The device operates over a wide supply voltage range from 4.5V to 36V, making it suitable for 12V and 24V systems. It provides output currents up to 5A per channel (limited by package and thermal conditions) and includes comprehensive diagnostic functions via a 5V CMOS-compatible SPI interface.

Detailed Technical Specifications

Key Features

• Quad high-side driver with 50mOhm RDS(on) per channel
• SPI interface for control and diagnostics
• Integrated protection: overload, short-circuit, overtemperature, overvoltage, undervoltage, loss of ground
• Diagnostic functions: open load, short to battery, short to ground, overcurrent, overtemperature
• Wide supply voltage range: 4.5V to 36V
• Operating temperature: -40°C to 150°C
• PowerSSO-24 package with exposed pad for thermal dissipation
• AEC-Q100 qualified for automotive applications

Target Applications

• Automotive: Body control modules, lighting systems (LED headlamps, DRLs), HVAC actuators, seat control, door modules
• Industrial: Programmable logic controllers (PLCs), industrial automation, motor control, solenoid drivers
• Specific examples: 5G base station power distribution, dashboard backlighting, infotainment system power management, electric vehicle battery disconnect

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for VNQ5050AKTR-E. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
