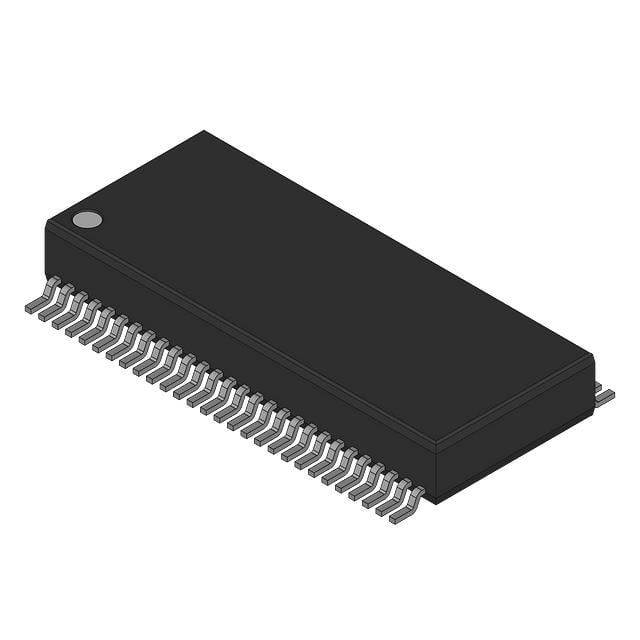

74ACT16648DL TI Bus Transceiver | 16-bit, 3-State, 5V Tolerant

Product Overview

The 74ACT16648DL from Texas Instruments is a 16-bit bus transceiver with 3-state outputs, designed for asynchronous communication between data buses. It features dual supply voltage operation (4.5V to 5.5V) and is 5V tolerant on inputs, making it ideal for mixed-voltage systems. The device provides bidirectional data flow with direction control (DIR) and output enable (OE) pins. Packaged in a 56-pin SSOP, it offers high drive capability (±24mA) and low power consumption.

Detailed Technical Specifications

Key Features

• 16-bit bidirectional bus transceiver
• 3-state outputs for bus isolation
• 5V tolerant inputs for mixed-voltage systems
• High drive capability: ±24mA
• Fast propagation delay: 6.5ns max at 5V
• Low power consumption: ICC 4µA max
• ESD protection: 2kV HBM
• Industrial temperature range: -40°C to +85°C

Target Applications

• 5G base station control boards for data bus isolation
• Automotive dashboard display modules for signal buffering
• Industrial PLC I/O modules for level translation
• Telecommunications switches for backplane interfacing
• Medical imaging equipment for data acquisition

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for 74ACT16648DL. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
