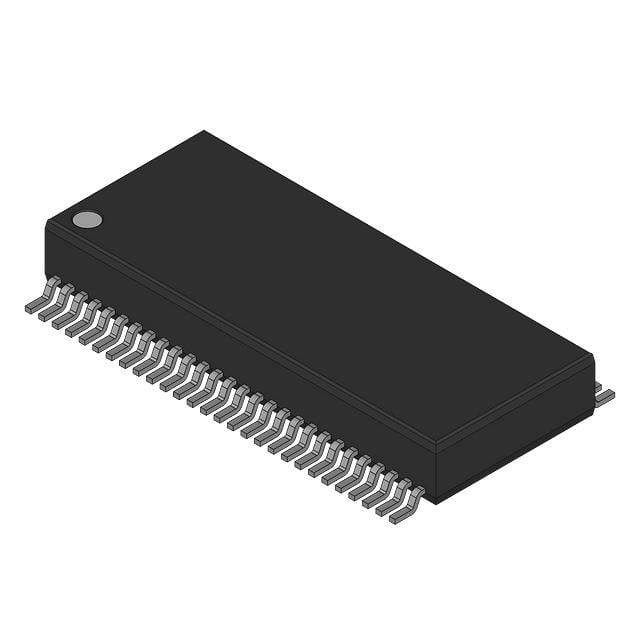

74ACT16864DL TI Bus Transceiver | 20-bit | 4.5V-5.5V, 24mA

Product Overview

The 74ACT16864DL is a 20-bit bus transceiver from Texas Instruments, designed for bidirectional asynchronous communication between data buses. It features two 10-bit input/output ports (A and B) with separate output-enable (OE) and direction-control (DIR) pins. Operating from a 4.5V to 5.5V supply, it provides 24mA output drive at TTL levels, making it suitable for high-speed bus interfaces in industrial and telecom systems.

Detailed Technical Specifications

Key Features

• 20-bit bidirectional bus transceiver
• Separate direction control (DIR) and output enable (OE) for each port
• TTL-compatible inputs and outputs
• ESD protection exceeds 2000V per MIL-STD-883, Method 3015
• Latch-up performance exceeds 250mA per JESD 17
• Flow-through pinout for easy PCB layout

Target Applications

• 5G base station control boards (e.g., data bus isolation between FPGA and backplane)
• Automotive dashboard display modules (e.g., communication between MCU and LCD driver)
• Industrial PLC I/O modules (e.g., bidirectional data transfer between CPU and fieldbus)
• Telecom line cards (e.g., interface between network processor and line interface units)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for 74ACT16864DL. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
