74ALVCH16524DLR TI Bus Transceiver | 18-bit | 2.3V-3.6V, 3-State

Product Overview

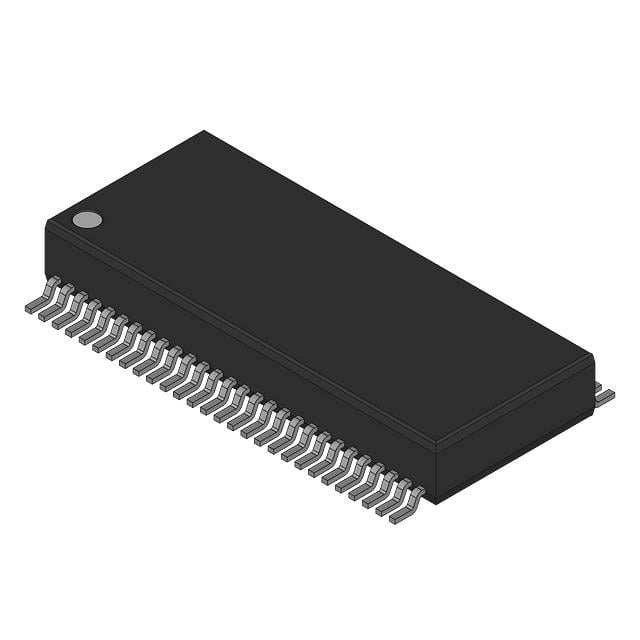

The 74ALVCH16524DLR is a high-performance 18-bit universal bus transceiver from Texas Instruments, designed for asynchronous communication between data buses. It operates from 2.3V to 3.6V, making it ideal for low-voltage applications. The device features 3-state outputs, bus hold on data inputs, and supports partial power-down (Ioff) to prevent backflow current. Housed in a SSOP-56 package, it offers high drive capability (±24 mA at 3.3V) and is compatible with JEDEC standard JESD8-B.

Detailed Technical Specifications

Key Features

• 18-bit universal bus transceiver with direction control (DIR) and output enable (OE)
• Bus hold on data inputs eliminates need for external pull-up/pull-down resistors
• Partial power-down (Ioff) supports live insertion and hot-swap
• 3-state outputs for bus-oriented applications
• ESD protection exceeds JESD 22 (2000V HBM, 1000V CDM)
• Latch-up performance exceeds 100 mA per JESD 78

Target Applications

• 5G base station control boards (e.g., data bus isolation between FPGA and processor)
• Automotive dashboard display systems (e.g., connecting MCU to LCD driver)
• Industrial PLC I/O modules (e.g., backplane bus transceiver)
• Networking equipment (e.g., router line card data path)
• Data storage systems (e.g., SSD controller interface)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for 74ALVCH16524DLR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
