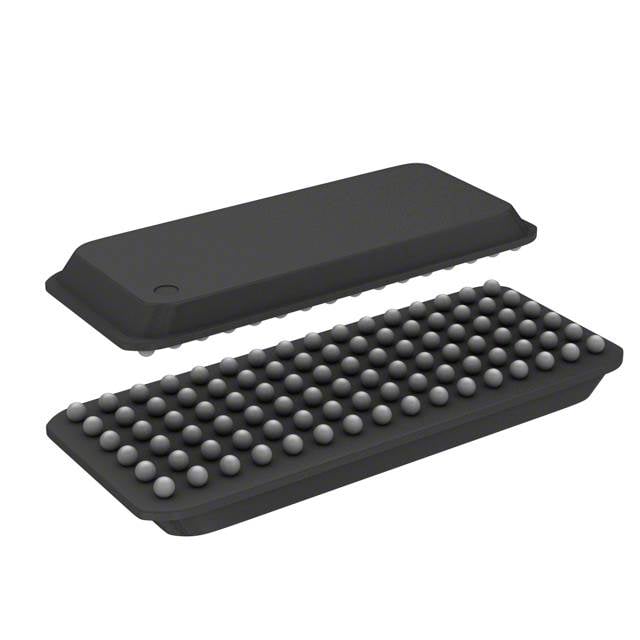

74AVCB324245ZKER TI Bus Transceiver | 96-PBGAMICROSTAR (13.6X5.6) | 32-bit, 1.2V-3.6V

Product Overview

The 74AVCB324245ZKER is a 32-bit (4-byte) bus transceiver from Texas Instruments, designed for bidirectional voltage-level translation and data communication between different voltage domains. It operates with a supply voltage range of 1.2V to 3.6V on both A and B ports, making it ideal for mixed-voltage systems. The device is housed in a compact 96-PBGA MICROSTAR package (13.6x5.6 mm), offering high-density integration for space-constrained applications. It features 4-bit control sections (4 x 8-bit) with independent direction control via DIR pins, and output enable (OE) for each section. The device supports partial power-down (Ioff) and is fully specified for hot insertion.

Detailed Technical Specifications

Key Features

• Bidirectional voltage-level translation between 1.2V, 1.5V, 1.8V, 2.5V, and 3.3V nodes
• 4 independent 8-bit channels with separate direction and output enable controls
• Partial power-down mode (Ioff) prevents back-current flow when device is powered down
• Bus hold on data inputs eliminates need for external pull-up/pull-down resistors
• Low static power consumption (ICC < 40 µA)
• Supports hot insertion and live insertion
• Packaged in space-saving 96-ball BGA with 0.5 mm pitch

Target Applications

• 5G base station control boards (e.g., interfacing FPGA with baseband processors)
• Automotive dashboard display modules (e.g., connecting MCU to TFT driver ICs)
• Industrial PLC I/O modules (e.g., level translation between 1.8V sensor and 3.3V controller)
• Networking equipment (e.g., router line cards for mixed-voltage backplane communication)
• Portable consumer electronics (e.g., smartphone motherboard bridging application processor and peripheral ICs)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for 74AVCB324245ZKER. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

74AVCB324245ZKER 是德州儀器（TI）推出的32位（4字節）匯流排收發器，專為不同電壓域之間的雙向電平轉換和數據通信而設計。它在A和B端口上支持1.2V至3.6V的電源電壓範圍，非常適合混合電壓系統。器件採用緊湊的96-PBGA MICROSTAR封裝（13.6x5.6 mm），為空間受限的應用提供高密度集成。它包含4個8位控制區塊，每個區塊具有獨立的DIR引腳方向控制和輸出使能（OE）。器件支持部分斷電（Ioff）並完全指定用於熱插拔。

詳細技術參數

核心特性

• 在1.2V、1.5V、1.8V、2.5V和3.3V節點之間進行雙向電平轉換
• 4個獨立的8位通道，每個通道具有單獨的方向和輸出使能控制
• 部分斷電模式（Ioff）防止器件斷電時出現反向電流
• 數據輸入上的總線保持功能，無需外部上拉/下拉電阻
• 低靜態功耗（ICC < 40 µA）
• 支持熱插拔和帶電插拔
• 採用節省空間的96球BGA封裝，球間距0.5 mm

典型應用場景

• 5G基站控制板（例如，FPGA與基帶處理器之間的接口）
• 汽車儀表盤顯示模塊（例如，MCU與TFT驅動IC的連接）
• 工業PLC I/O模塊（例如，1.8V傳感器與3.3V控制器之間的電平轉換）
• 網絡設備（例如，路由器線卡上的混合電壓背板通信）
• 便攜消費電子產品（例如，智能手機主板上的應用處理器與外設IC橋接）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 74AVCB324245ZKER 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
