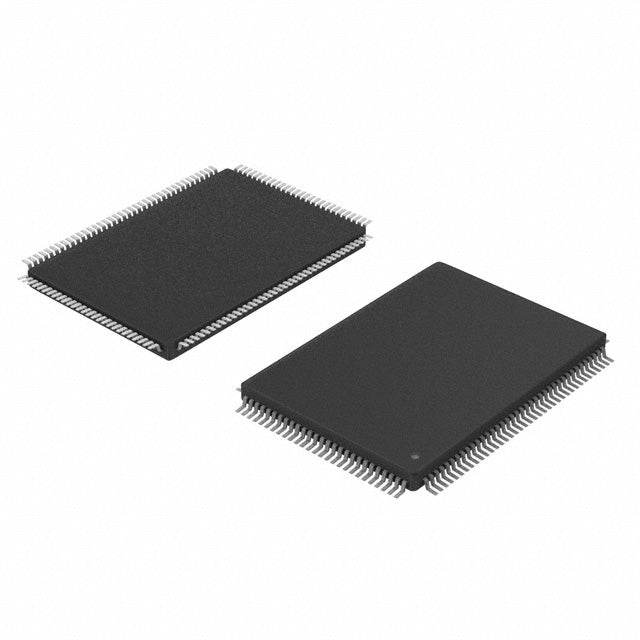

ADC07D1520CIYB/NOPB TI Analog-to-Digital Converter | 128-HLQFP (20x20) | 7GSPS, 12-Bit

Product Overview

The ADC07D1520CIYB/NOPB is a high-performance, dual-channel 12-bit analog-to-digital converter (ADC) from Texas Instruments, offering a maximum sampling rate of 7.0 GSPS. Housed in a 128-lead HLQFP package (20x20 mm), this device is designed for demanding applications requiring wide bandwidth and high dynamic range. It features a dual-edge sampling (DES) mode that effectively doubles the sampling rate to 14 GSPS when using both channels interleaved. The ADC07D1520CIYB/NOPB operates from a single 1.9V supply and includes an integrated track-and-hold circuit, output demultiplexer, and LVDS-compatible outputs.

Detailed Technical Specifications

Key Features

• Dual 12-bit ADC cores with 7 GSPS per channel
• Dual-edge sampling (DES) mode for 14 GSPS effective rate
• Integrated track-and-hold amplifier
• LVDS output with programmable swing
• On-chip reference and sample clock buffer
• Low power consumption: 4.2 W typical
• Wide input bandwidth: 3.5 GHz
• Pin-compatible with lower speed family

Target Applications

• 5G base station transceivers (e.g., massive MIMO, beamforming)
• Radar systems (e.g., automotive radar, defense phased array)
• Software-defined radio (SDR) platforms
• High-speed data acquisition (e.g., oscilloscopes, digitizers)
• Satellite communications (e.g., ground station receivers)
• Medical imaging (e.g., ultrasound, MRI)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for ADC07D1520CIYB/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
