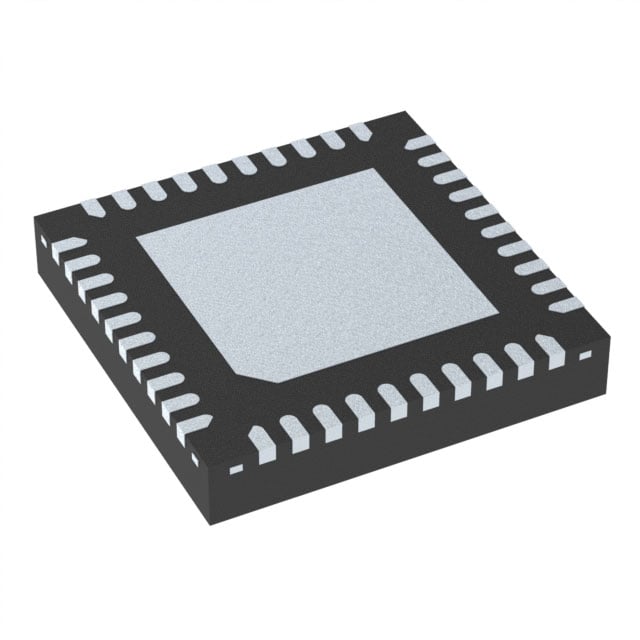

ADC3543IRSBT TI Analog-to-Digital Converter | 40-WQFN (5x5) | 14-Bit, 65MSPS

Product Overview

The ADC3543IRSBT is a high-performance, low-power 14-bit analog-to-digital converter (ADC) from Texas Instruments, designed for a wide range of applications requiring high-speed data conversion. Housed in a compact 40-WQFN (5x5) package, this device offers excellent dynamic performance and low power consumption, making it ideal for portable and embedded systems. The ADC3543IRSBT operates at sampling rates up to 65 MSPS and features a serial LVDS interface for high-speed data transfer. Its integrated features, such as internal reference and programmable gain, simplify system design and reduce external component count.

Detailed Technical Specifications

Key Features

• 14-bit resolution with 65 MSPS sampling rate
• Low power consumption: 155 mW at 65 MSPS
• Excellent dynamic performance: SNR 73 dB, SFDR 88 dB at 10 MHz input
• Serial LVDS interface for high-speed data transfer
• Internal reference and programmable gain amplifier (PGA)
• Small 40-WQFN (5x5) package for space-constrained designs
• Wide operating temperature range: -40°C to +85°C

Target Applications

• 5G base station transceivers (e.g., remote radio units)
• Software-defined radios (SDR)
• Medical imaging systems (e.g., ultrasound)
• Test and measurement equipment (e.g., oscilloscopes)
• Automotive radar and driver assistance systems (ADAS)
• Industrial process control and data acquisition
