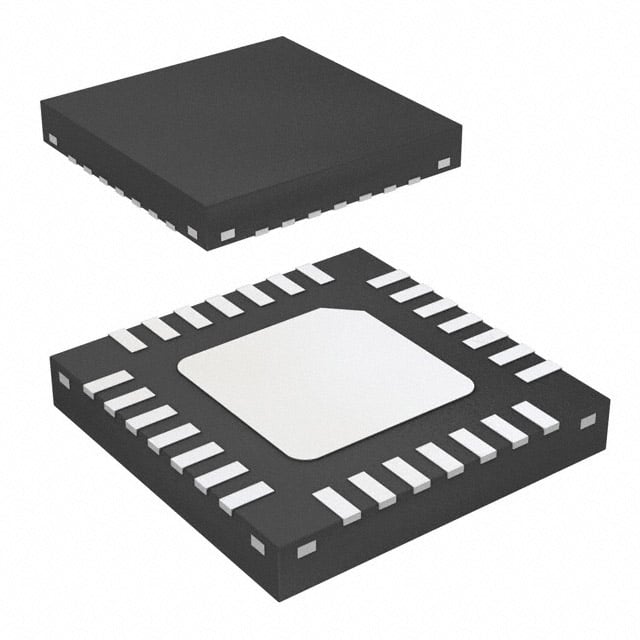

ADS1293CISQE/NOPB TI Analog Front End | 28-WQFN (5x5) | 3-Ch, 24-Bit ADC

Product Overview

The ADS1293CISQE/NOPB is a low-power, 3-channel, 24-bit delta-sigma analog-to-digital converter (ADC) with integrated programmable gain amplifier (PGA), reference, and oscillator. Designed for biopotential measurements, it offers high resolution and low noise, making it ideal for medical instrumentation such as ECG, EEG, and patient monitoring systems. The device operates from a single 2.7V to 5.25V supply and features a flexible input multiplexer, lead-off detection, and a built-in test signal. It communicates via SPI interface and is available in a compact 28-pin WQFN package (5x5 mm).

Detailed Technical Specifications

Key Features

• Three low-noise, 24-bit delta-sigma ADCs with PGA
• Programmable data rate up to 8 kSPS
• Integrated right-leg drive amplifier
• Lead-off detection for electrode connection monitoring
• Built-in test signal for self-diagnostics
• Low power: 0.5 mW per channel
• SPI-compatible serial interface
• Small 5x5 mm WQFN package

Target Applications

• ECG (Electrocardiogram) monitors for hospitals and wearable devices
• EEG (Electroencephalogram) systems for brain activity monitoring
• Patient monitoring systems (e.g., vital signs monitors)
• Fitness and sports wearables (e.g., heart rate monitors)
• Medical instrumentation requiring high-resolution biopotential measurements
