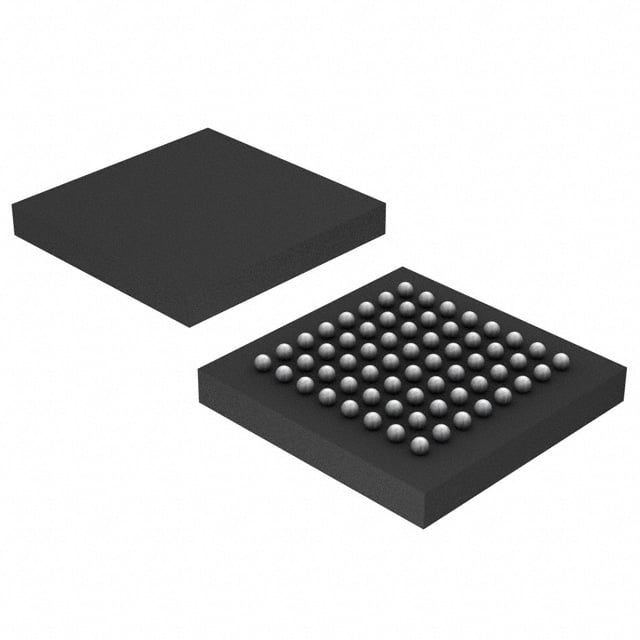

ADS1298CZXGT TI Analog Front End | 64-NFBGA(8x8) | 8-Ch, 24-Bit, 32kSPS

Product Overview

The ADS1298CZXGT is a low-power, 8-channel, 24-bit delta-sigma analog front-end (AFE) from Texas Instruments, designed for biopotential measurements such as ECG, EEG, and EMG. It integrates programmable gain amplifiers (PGAs), internal reference, and an onboard oscillator, making it ideal for portable and high-resolution medical instrumentation. The device operates from a single 2.7V to 5.25V supply and features a maximum data rate of 32 kSPS per channel. Housed in a compact 64-ball NFBGA (8x8 mm) package, it offers excellent performance for multi-channel acquisition systems.

Detailed Technical Specifications

Key Features

• 8 low-noise PGAs and 8 high-resolution delta-sigma ADCs
• Low power: 0.75 mW/channel
• Integrated right-leg drive amplifier
• Lead-off detection
• Built-in test signals
• Flexible power-down modes
• SPI-compatible serial interface
• Small 8x8 mm NFBGA package

Target Applications

• ECG (electrocardiogram) monitors for patient monitoring systems
• EEG (electroencephalogram) acquisition in brain-computer interfaces
• EMG (electromyography) for prosthetic control
• Wearable health patches (e.g., continuous heart rate monitoring)
• Medical imaging equipment (e.g., MRI-compatible patient monitors)
• 5G base station power management (for auxiliary health monitoring in remote sites)
• Automotive dashboard driver monitoring systems (e.g., fatigue detection)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for ADS1298CZXGT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
