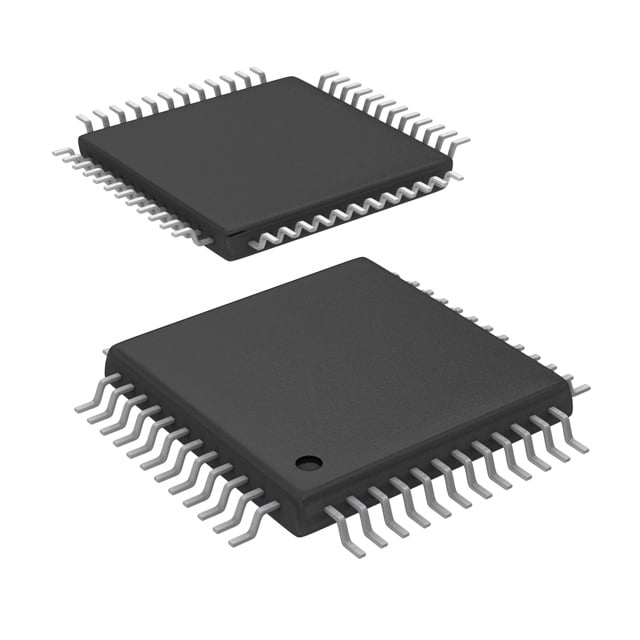

ADS5220PFBT TI ADC | 48-TQFP (7x7) | 12-Bit, 125MSPS

Product Overview

The ADS5220PFBT is a high-performance, 12-bit analog-to-digital converter (ADC) from Texas Instruments, offering a maximum sampling rate of 125 MSPS. It is designed for demanding applications requiring high speed and precision, such as communications, test and measurement, and medical imaging. The device operates from a single 3.3V supply and features a differential input with a wide bandwidth, making it suitable for direct IF sampling architectures. The ADS5220PFBT is housed in a compact 48-pin TQFP (7x7 mm) package, enabling space-efficient designs.

Detailed Technical Specifications

Key Features

• 12-bit resolution with 125 MSPS sampling rate
• Excellent dynamic performance: 68 dBFS SNR and 82 dBc SFDR
• Low power consumption: 780 mW typical
• Single 3.3V supply operation
• Differential input with 500 MHz full power bandwidth
• Internal reference and sample-and-hold
• Output data format: LVDS compatible
• Small 48-pin TQFP package for space-constrained designs

Target Applications

• Wireless communications: 5G base stations, software-defined radios
• Test and measurement: oscilloscopes, spectrum analyzers
• Medical imaging: ultrasound systems, MRI receivers
• Radar and defense systems
• High-speed data acquisition

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for ADS5220PFBT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
