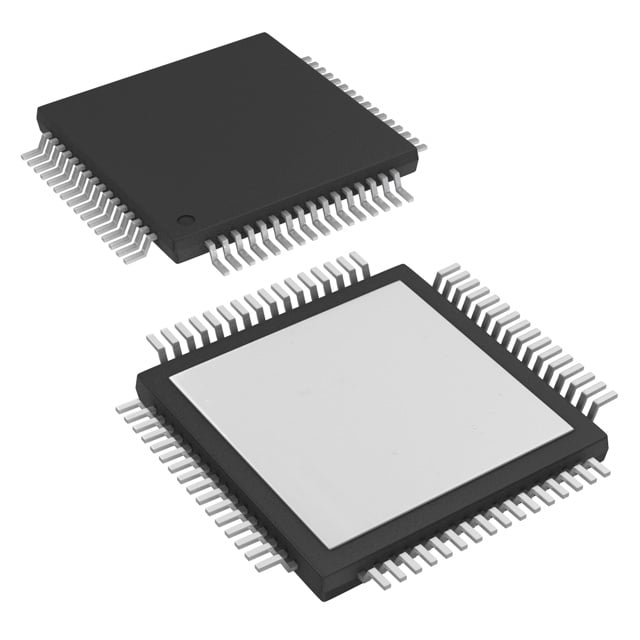

ADS5242IPAPT TI ADC | 64-HTQFP (10X10) | 14-Bit, 125MSPS, Dual-Channel

Product Overview

The ADS5242IPAPT is a high-performance, dual-channel, 14-bit analog-to-digital converter (ADC) from Texas Instruments. It operates at sampling rates up to 125 MSPS, delivering exceptional dynamic performance for demanding applications. The device is housed in a compact 64-HTQFP (10x10 mm) package, making it ideal for space-constrained designs. With low power consumption and high SNR, the ADS5242IPAPT is optimized for communications, test and measurement, and medical imaging systems.

Detailed Technical Specifications

Key Features

• Dual-channel 14-bit ADC with 125 MSPS maximum sample rate
• High dynamic performance: 73.5 dBFS SNR, 85 dBc SFDR
• Low power consumption: 1.1 W total for both channels
• LVDS output interface for reduced noise and high-speed data transfer
• Internal reference and sample-and-hold amplifier
• Programmable gain and offset adjustment
• Small 64-HTQFP package (10x10 mm) for space-saving designs

Target Applications

• 5G base station receivers (e.g., Massive MIMO, remote radio units)
• Software-defined radios (SDR) for military and commercial communications
• Medical imaging systems (e.g., ultrasound, MRI)
• Test and measurement equipment (e.g., oscilloscopes, spectrum analyzers)
• Radar and electronic warfare systems
• High-speed data acquisition cards

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for ADS5242IPAPT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
