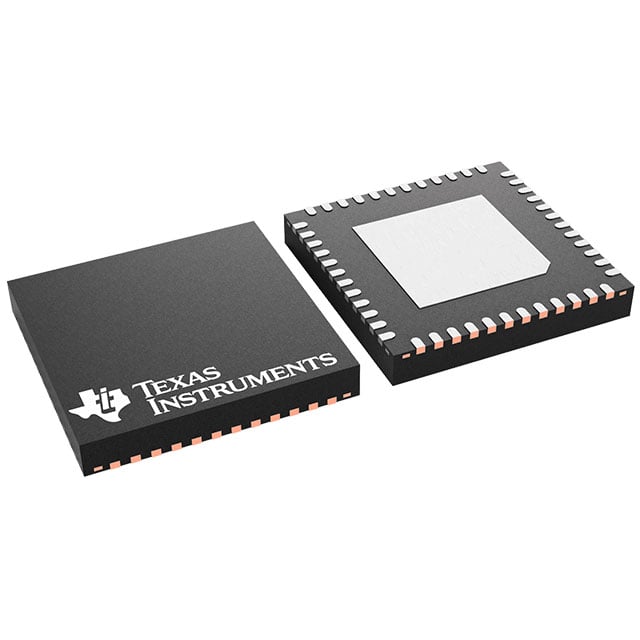

ADS5547IRGZR TI Analog-to-Digital Converter | 48-VQFN (7x7) | 14-Bit, 210 MSPS

Product Overview

The ADS5547IRGZR is a high-performance 14-bit, 210 MSPS analog-to-digital converter (ADC) from Texas Instruments. It features a 48-VQFN (7x7 mm) package and is designed for demanding applications requiring high dynamic range and low power consumption. The device integrates a high-bandwidth track-and-hold stage, internal reference, and LVDS outputs, making it ideal for wireless infrastructure, test and measurement, and defense systems.

Detailed Technical Specifications

Key Features

• 14-bit resolution with 210 MSPS sampling rate
• High dynamic performance: SNR = 73.5 dBFS, SFDR = 85 dBc at 100 MHz IF
• Low power consumption: 1.1 W at 210 MSPS
• Internal reference and track-and-hold circuit
• LVDS outputs for reduced noise and high-speed data transfer
• Programmable gain and offset adjustment
• Small 7x7 mm VQFN package for space-constrained designs

Target Applications

• 5G base station receivers (e.g., Massive MIMO, remote radio units)
• Software-defined radios (SDR) for military and aerospace
• Medical imaging systems (e.g., ultrasound, MRI)
• Test and measurement equipment (e.g., oscilloscopes, spectrum analyzers)
• Radar and electronic warfare systems
• High-speed data acquisition cards

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for ADS5547IRGZR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
