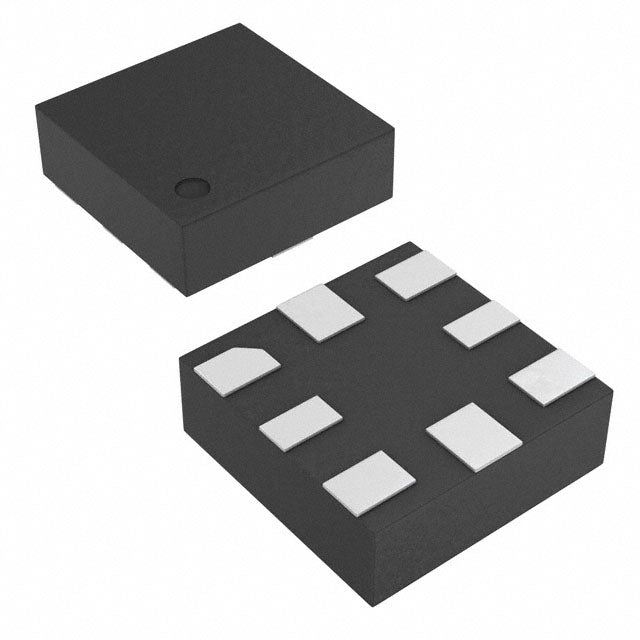

ADS7056IRUGR TI Analog-to-Digital Converter | 8-X2QFN (1.5x1.5) | 14-bit, 10 MSPS

Product Overview

The ADS7056IRUGR is a high-speed, 14-bit, 10 MSPS successive approximation register (SAR) analog-to-digital converter (ADC) from Texas Instruments. It operates from a single 1.8V supply and features a low power consumption of 1.5 mW at 10 MSPS. The device includes a small footprint 8-pin X2QFN package (1.5 mm x 1.5 mm), making it ideal for space-constrained applications. The ADS7056IRUGR offers excellent dynamic performance with a signal-to-noise ratio (SNR) of 71.5 dB and a spurious-free dynamic range (SFDR) of 85 dB at 100 kHz input frequency. It uses a serial peripheral interface (SPI) for data output, simplifying digital interface design.

Detailed Technical Specifications

Key Features

• 14-bit resolution with 10 MSPS sampling rate
• Ultra-low power: 1.5 mW at 10 MSPS
• Small package: 8-X2QFN (1.5 mm x 1.5 mm)
• Excellent AC performance: 71.5 dB SNR, 85 dB SFDR
• Simple SPI interface for easy digital integration
• Wide operating temperature range: -40°C to +125°C
• No missing codes
• Power-down mode for power saving

Target Applications

• 5G base station transceiver signal chain
• Automotive dashboard and infotainment systems
• Portable medical devices (e.g., ultrasound probes)
• Industrial process control and data acquisition
• Battery-powered IoT sensors
• Software-defined radio (SDR) systems

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for ADS7056IRUGR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

ADS7056IRUGR 是德州儀器（TI）推出的一款高速、14位、10 MSPS 逐次逼近寄存器（SAR）模數轉換器（ADC）。它採用單一1.8V電源供電，在10 MSPS採樣率下功耗僅為1.5 mW。器件採用小型8引腳X2QFN封裝（1.5 mm x 1.5 mm），非常適合空間受限的應用。ADS7056IRUGR 具有出色的動態性能，在100 kHz輸入頻率下信噪比（SNR）為71.5 dB，無雜散動態範圍（SFDR）為85 dB。它使用串行外設接口（SPI）進行數據輸出，簡化了數字接口設計。

詳細技術參數

核心特性

• 14位分辨率，10 MSPS採樣率
• 超低功耗：10 MSPS時僅1.5 mW
• 小型封裝：8-X2QFN（1.5 mm x 1.5 mm）
• 出色的交流性能：71.5 dB SNR，85 dB SFDR
• 簡單的SPI接口，便於數字集成
• 寬工作溫度範圍：-40°C 至 +125°C
• 無丟碼
• 掉電模式以節省功耗

典型應用場景

• 5G基站收發器信號鏈
• 汽車儀表盤和資訊娛樂系統
• 便攜式醫療設備（例如超聲探頭）
• 工業過程控制和數據採集
• 電池供電的物聯網傳感器
• 軟件定義無線電（SDR）系統

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 ADS7056IRUGR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
