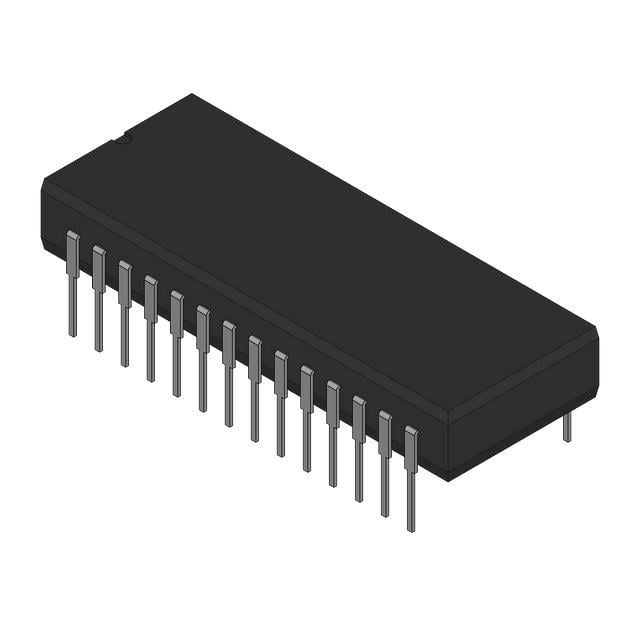

ADS774KP-4 TI Analog-to-Digital Converter | 12-bit, 125 kSPS, Parallel Interface

Product Overview

The ADS774KP-4 from Texas Instruments is a high-performance 12-bit successive approximation analog-to-digital converter (ADC) featuring a maximum sampling rate of 125 kSPS. It operates from a single +5V supply and includes an internal sample-and-hold, clock, and reference, simplifying system design. The device offers a parallel interface for easy connection to microprocessors and DSPs. Its low power consumption and small footprint make it ideal for industrial and embedded applications.

Detailed Technical Specifications

Key Features

• 12-bit resolution with no missing codes
• Internal sample-and-hold amplifier
• Internal clock and reference (2.5V)
• Parallel interface with 8-bit or 12-bit data bus
• Low power: 215 mW typical
• Single +5V supply operation
• Bipolar input capability with external reference
• 28-pin DIP package for through-hole assembly

Target Applications

• Industrial process control (e.g., PLC analog input modules)
• Data acquisition systems (e.g., 5G base station monitoring)
• Medical instrumentation (e.g., patient monitoring dashboards)
• Automotive test equipment (e.g., battery management systems)
• Embedded systems requiring high-accuracy analog-to-digital conversion

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for ADS774KP-4. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
