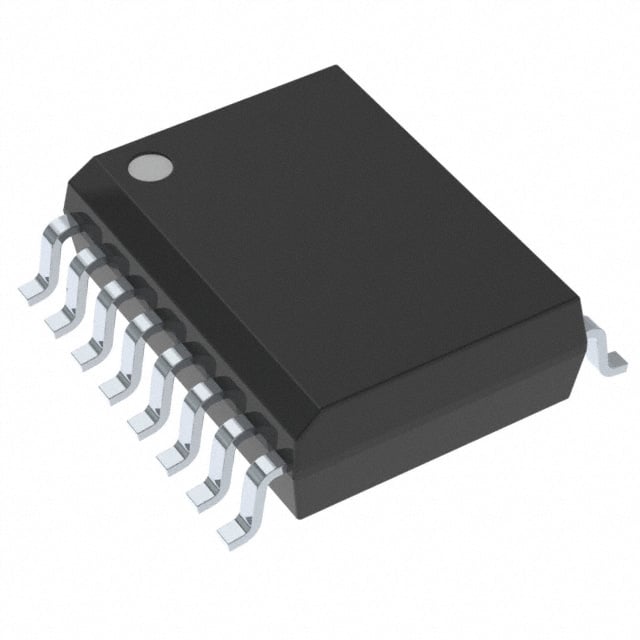

ADS7846E/2K5 TI Touch Screen Controller | 16-SSOP | 12-bit, 4-Wire

Product Overview

The ADS7846E/2K5 is a high-performance, low-power, 12-bit analog-to-digital converter (ADC) with a synchronous serial interface, designed specifically for touch screen applications. Manufactured by Texas Instruments (TI), this device features a 4-wire resistive touch screen interface, supporting both X and Y coordinate measurements as well as pressure (Z-axis) measurement. It operates from a single 2.2V to 5.25V supply and includes an on-chip 2.5V reference, making it ideal for battery-powered systems. The ADS7846E/2K5 is available in a compact 16-pin SSOP package, ensuring minimal board space usage.

Detailed Technical Specifications

Key Features

• 12-bit SAR ADC with 4-wire touch screen interface
• Supports X, Y, and Z (pressure) measurements
• Low power: 0.5 mW at 2.7V
• Internal 2.5V reference eliminates external components
• SPI-compatible serial interface for easy integration
• Automatic power-down between conversions
• Small 16-SSOP package for space-constrained designs

Target Applications

• Portable media players and smartphones
• GPS navigation systems
• Point-of-sale (POS) terminals
• Industrial control panels
• Medical monitoring devices
• Automotive dashboard touch screens
• 5G base station control interfaces

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for ADS7846E/2K5. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
