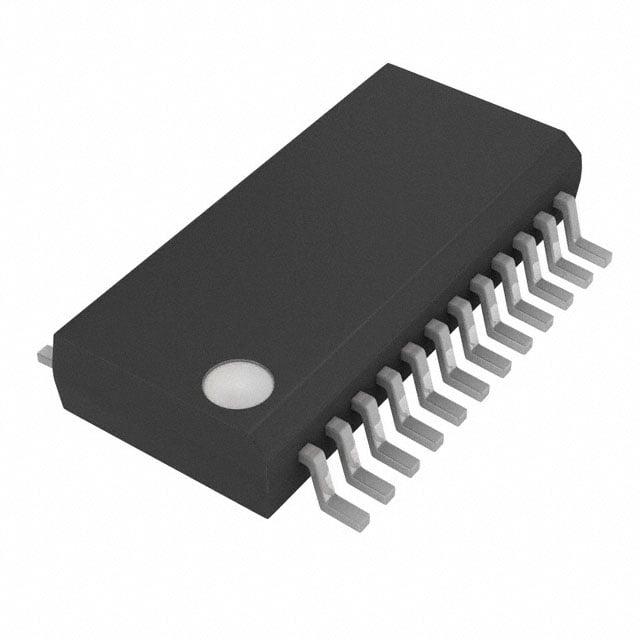

ADS7861EB TI Analog-to-Digital Converter | 24-SSOP | 500kSPS, 12-Bit

Product Overview

The ADS7861EB is a dual, 12-bit, 500kSPS successive approximation register (SAR) analog-to-digital converter (ADC) from Texas Instruments. It features two simultaneous sampling inputs, a high-speed serial interface, and operates from a single 5V supply. The device is housed in a compact 24-SSOP package, making it ideal for space-constrained applications requiring high precision and low power consumption.

Detailed Technical Specifications

Key Features

• Dual simultaneous sampling ADC
• 12-bit resolution with no missing codes
• 500 kSPS throughput per channel
• High-speed SPI-compatible serial interface
• Low power: 35 mW at 500 kSPS
• Wide input voltage range: 0 to 5V
• Internal reference (2.5V) or external reference
• Power-down mode for power savings
• Small 24-SSOP package

Target Applications

• 5G base station power amplifier linearization
• Automotive battery management systems
• Industrial motor control (e.g., servo drives)
• Medical imaging (e.g., ultrasound beamforming)
• Data acquisition systems for test and measurement
• Dashboard instrumentation for electric vehicles

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for ADS7861EB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
