ADS7861IRHBT TI ADC | 32-VQFN (5x5) | 500kSPS, 12-Bit, Dual

Product Overview

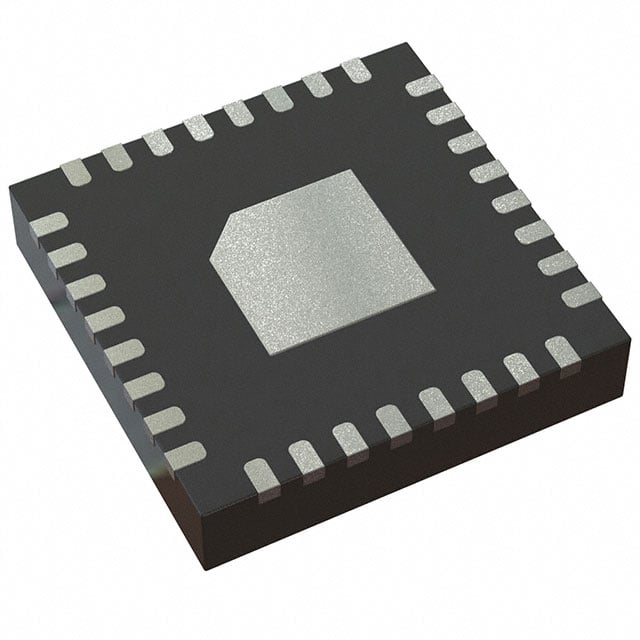

The ADS7861IRHBT is a dual, 12-bit, 500kSPS successive approximation register (SAR) analog-to-digital converter (ADC) from Texas Instruments. It operates from a single 5V supply and features two independent ADCs with simultaneous sampling capability. The device includes a 2.5V internal reference and a flexible digital interface compatible with SPI/QSPI/MICROWIRE. Housed in a compact 32-VQFN (5x5mm) package, it is ideal for space-constrained applications requiring high-speed, low-power data acquisition.

Detailed Technical Specifications

Key Features

• Dual 12-bit SAR ADCs with simultaneous sampling
• 500 kSPS throughput per channel
• Internal 2.5V reference with 10 ppm/°C drift
• Low power: 35 mW at 500 kSPS
• Wide input voltage range: 0 to Vref
• Flexible digital interface (SPI/QSPI/MICROWIRE)
• Power-down mode for power savings
• Small 5x5mm VQFN package

Target Applications

• Motor control in industrial drives (e.g., servo drives)
• Data acquisition systems for 5G base station power monitoring
• Portable instrumentation (e.g., digital multimeters)
• Automotive battery management systems (BMS)
• Medical imaging equipment (e.g., ultrasound front-end)
