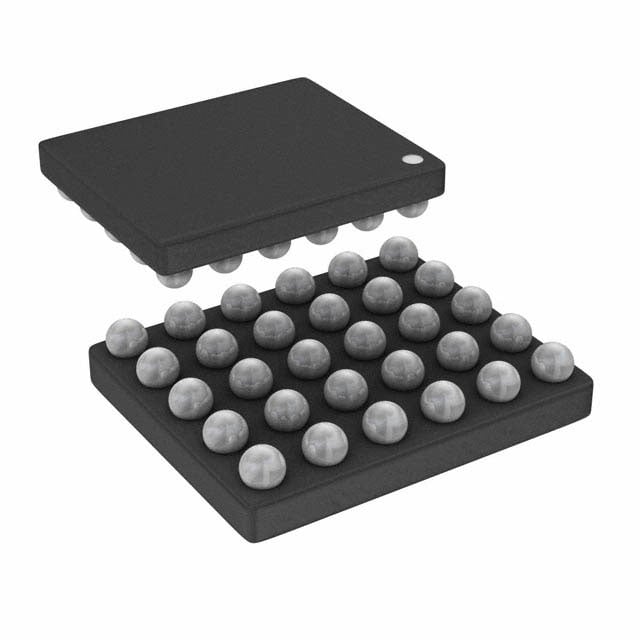

AFE44S30YZT TI Analog Front End | 30-DSBGA | 4-Ch, 16-Bit, 125kSPS

Product Overview

The AFE44S30YZT is a high-performance, low-power analog front-end (AFE) from Texas Instruments, designed for multi-channel data acquisition systems. Housed in a compact 30-ball DSBGA package, it integrates four 16-bit successive approximation register (SAR) analog-to-digital converters (ADCs) with a maximum sampling rate of 125 kSPS per channel. The device features a programmable gain amplifier (PGA), internal reference, and a flexible input multiplexer, making it ideal for applications requiring precise analog signal conditioning and conversion.

Detailed Technical Specifications

Key Features

• Four 16-bit SAR ADCs with simultaneous sampling capability
• Low power consumption: 4.5 mW per channel at 125 kSPS
• Programmable gain amplifier (PGA) with gains from 1 to 128
• Internal 2.5 V reference with low drift
• Flexible input multiplexer supporting single-ended and differential inputs
• SPI-compatible serial interface
• Small footprint: 30-ball DSBGA (2.5 mm × 2.5 mm)
• Wide operating temperature range: -40°C to +125°C

Target Applications

• 5G base station power amplifier linearization (digital predistortion feedback path)
• Automotive battery management systems (BMS) for voltage and current sensing
• Industrial process control (PLC analog input modules)
• Medical instrumentation (patient monitoring, ECG/EEG)
• Data acquisition systems for test and measurement equipment
• Smart grid and energy metering

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for AFE44S30YZT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
