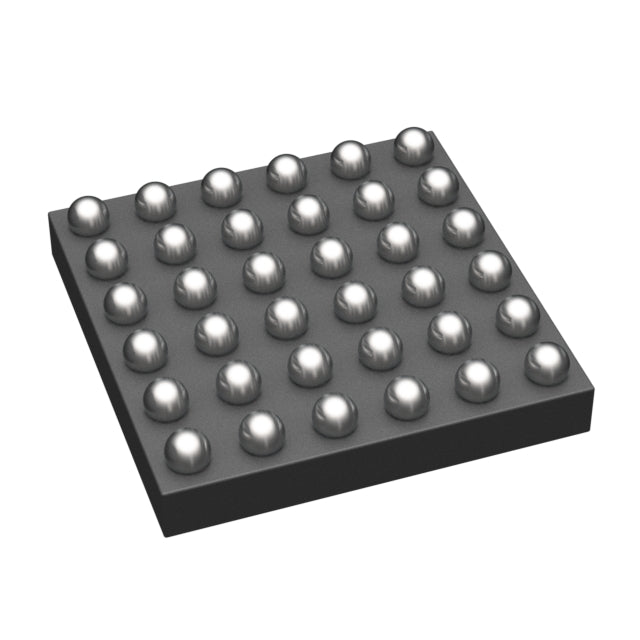

AFE4950YBGR TI Analog Front End | 36-DSBGA (2.63X2.46) | 4-Ch AFE, 24-bit, 8 kSPS

Product Overview

The AFE4950YBGR from Texas Instruments is a highly integrated, low-power analog front-end (AFE) designed for multi-channel sensor applications. It features four independent signal chains, each comprising a low-noise amplifier (LNA), programmable gain amplifier (PGA), and a 24-bit delta-sigma ADC. The device operates from a single 1.8V supply and is housed in a compact 36-ball DSBGA package (2.63mm x 2.46mm). With a maximum data rate of 8 kSPS per channel, it is ideal for precision measurement in industrial and medical systems.

Detailed Technical Specifications

Key Features

• Four independent 24-bit delta-sigma ADCs with integrated PGA
• Low noise: 1.5 µVpp (G=128, 10 Hz bandwidth)
• Programmable data rate from 0.125 kSPS to 8 kSPS
• Internal voltage reference (2.5V) with low drift
• SPI-compatible serial interface
• Built-in temperature sensor and diagnostic features
• Ultra-small package for space-constrained designs

Target Applications

• Industrial process control (e.g., pressure transmitters, temperature sensors)
• Medical instrumentation (e.g., patient monitoring, ECG/EKG systems)
• Portable measurement devices (e.g., handheld multimeters, data loggers)
• 5G base station power monitoring (e.g., current/voltage sensing)
• Automotive battery management systems (e.g., cell voltage monitoring)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for AFE4950YBGR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

AFE4950YBGR 是德州儀器（TI）推出的一款高度集成、低功耗的模擬前端（AFE），專為多通道傳感器應用設計。它包含四個獨立的信號鏈，每個信號鏈由低噪聲放大器（LNA）、可編程增益放大器（PGA）和 24 位 Δ-Σ ADC 組成。該器件可在 1.8V 單電源下工作，採用緊湊的 36 球 DSBGA 封裝（2.63mm x 2.46mm）。每通道最高數據速率為 8 kSPS，非常適合工業和醫療系統中的精密測量。

詳細技術參數

核心特性

• 四個獨立的 24 位 Δ-Σ ADC，集成 PGA
• 低噪聲：1.5 µVpp（G=128，10 Hz 帶寬）
• 可編程數據速率：0.125 kSPS 至 8 kSPS
• 內部電壓基準（2.5V），低漂移
• SPI 兼容串行接口
• 內置溫度傳感器和診斷功能
• 超小封裝，適合空間受限的設計

典型應用場景

• 工業過程控制（例如壓力變送器、溫度傳感器）
• 醫療儀器（例如病人監護、心電圖/心電圖系統）
• 便攜式測量設備（例如手持萬用表、數據記錄儀）
• 5G 基站電源監控（例如電流/電壓感測）
• 汽車電池管理系統（例如電池電壓監控）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 AFE4950YBGR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
