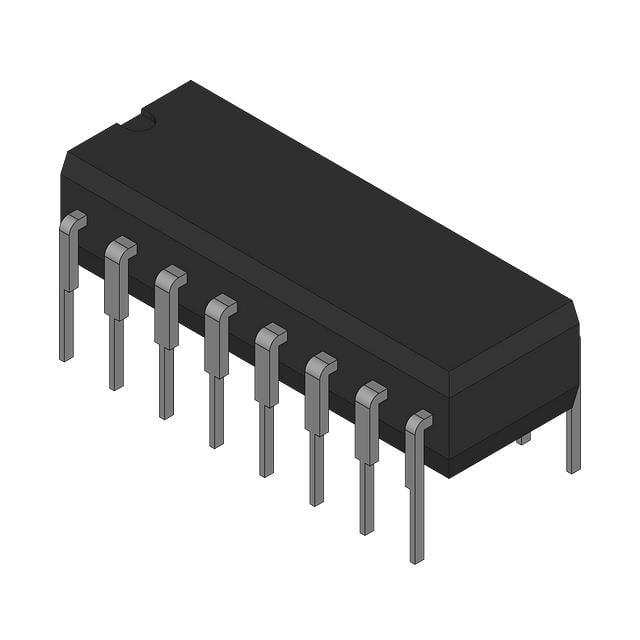

CD74AC153EE4 TI Multiplexer | 16-PDIP | Dual 4-Channel, 1.5V to 5.5V

Product Overview

The CD74AC153EE4 is a dual 4-input multiplexer from Texas Instruments, designed for high-speed digital signal routing. It operates over a wide supply voltage range of 1.5V to 5.5V, making it suitable for battery-powered and low-voltage applications. The device features two independent 4-channel multiplexers with common select inputs (A and B) and individual enable inputs (E1 and E2). Each multiplexer selects one of four data sources based on the binary address applied to the select inputs. The outputs are active-high and provide rail-to-rail swing. The CD74AC153EE4 is fabricated using advanced CMOS technology, ensuring low power consumption and high noise immunity. It is offered in a 16-pin PDIP package, ideal for through-hole mounting in prototyping and industrial designs.

Detailed Technical Specifications

Key Features

• Dual 4-input multiplexer with common select lines
• Wide operating voltage range: 1.5V to 5.5V
• High speed: typical propagation delay of 6.5 ns at 5V
• Low power consumption: ICC of 4 µA (max) at 25°C
• Individual enable inputs for each multiplexer
• Rail-to-rail output swing
• High noise immunity: VIH = 0.7 × VCC, VIL = 0.3 × VCC
• ESD protection exceeds 2000V per MIL-STD-883, Method 3015
• Latch-up performance exceeds 100 mA per JESD 78, Class II
• Available in 16-PDIP package for easy prototyping

Target Applications

• Data routing in 5G base station control boards
• Signal selection in automotive dashboard displays
• Multiplexing sensor inputs in industrial PLCs
• Channel selection in medical imaging equipment
• Address decoding in memory systems
• Function selection in test and measurement instruments

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for CD74AC153EE4. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

CD74AC153EE4 是德州儀器推出的雙路4輸入多路復用器，專為高速數字信號路由設計。它支持1.5V至5.5V的寬電源電壓範圍，適用於電池供電和低電壓應用。該器件包含兩個獨立的4通道多路復用器，共用選擇輸入（A和B）並具有獨立的使能輸入（E1和E2）。每個多路復用器根據選擇輸入的二進制地址從四個數據源中選擇一個。輸出為高電平有效，提供軌到軌擺幅。CD74AC153EE4 採用先進的CMOS工藝製造，功耗低且抗干擾能力強。它採用16引腳PDIP封裝，適合通孔安裝，便於原型設計和工業應用。

詳細技術參數

核心特性

• 雙路4輸入多路復用器，共用選擇線
• 寬工作電壓範圍：1.5V 至 5.5V
• 高速：5V 時典型傳播延遲為 6.5 ns
• 低功耗：25°C 時 ICC 最大值為 4 µA
• 每個多路復用器具有獨立的使能輸入
• 軌到軌輸出擺幅
• 高抗干擾能力：VIH = 0.7 × VCC，VIL = 0.3 × VCC
• ESD 保護超過 2000V（MIL-STD-883，方法3015）
• 閂鎖性能超過 100 mA（JESD 78，Class II）
• 採用 16-PDIP 封裝，便於原型設計

典型應用場景

• 5G 基站控制板中的數據路由
• 汽車儀表盤顯示中的信號選擇
• 工業 PLC 中的傳感器輸入多路復用
• 醫療成像設備中的通道選擇
• 存儲系統中的地址解碼
• 測試測量儀器中的功能選擇

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 CD74AC153EE4 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
