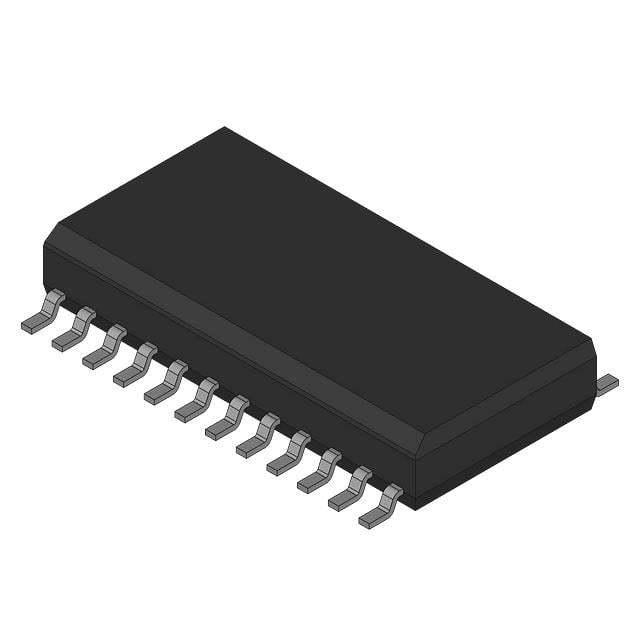

CD74FCT543M TI Octal Registered Transceiver | 3-State | Non-Inverting, 8-Bit

Product Overview

The CD74FCT543M is a high-performance octal registered transceiver from Texas Instruments, designed for bidirectional asynchronous communication between two data buses. It features non-inverting 3-state outputs and operates from a single 5V supply. The device incorporates D-type flip-flops with enable and direction control, making it ideal for buffered data transfer in bus-oriented systems. With propagation delays as low as 6.5 ns and high drive capability (64 mA sink/32 mA source), it ensures reliable operation in high-speed digital systems.

Detailed Technical Specifications

Key Features

• Bi-directional octal registered transceiver with non-inverting outputs
• 3-state outputs for bus isolation
• Edge-triggered D-type flip-flops with enable (LE) and output enable (OE)
• Low propagation delay: 6.5 ns typical
• High drive capability: 64 mA sink, 32 mA source
• Single 5V supply operation
• Input hysteresis for noise immunity
• Compatible with TTL and CMOS logic levels
• Available in SOIC-24 package

Target Applications

• 5G base station control logic for data bus buffering
• Automotive dashboard display interface (e.g., instrument cluster)
• Industrial PLC (Programmable Logic Controller) I/O modules
• Telecommunications switching equipment
• Memory address/data bus isolation in embedded systems
• FPGA/CPLD interface expansion

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for CD74FCT543M. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
