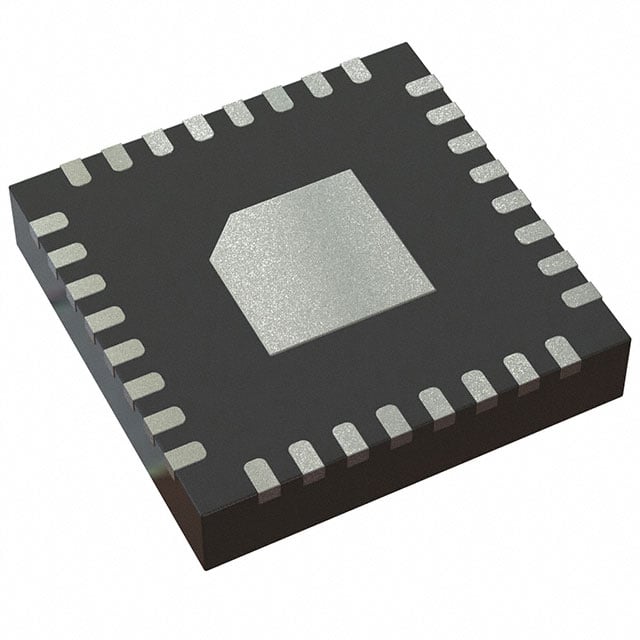

CDCLVD110ARHBR TI Clock Buffer | 32-VQFN (5x5) | 1.8V, 2.5V, 3.3V, 10 Outputs

QUOTE REQ
×

WECHAT SUPPORT

Direct Engineer Contact

WeChat QR

ID: Jasin_Semi

HK/SZ Authorized Supply

×

ENTERPRISE QQ

Fast Quotation

QQ QR

Official ID: 4008823823

×

TELEGRAM SUPPORT

Global & CIS Region Support

Telegram QR

@你的Telegram用户名

STM32F103C8T6NE555PLM358DRESP32-WROOM-32TL431AIDBZRAMS1117-3.3LM7805MAX3232CSEPC817CTPS5430DDAR STM32F103C8T6NE555PLM358DRESP32-WROOM-32TL431AIDBZRAMS1117-3.3LM7805MAX3232CSEPC817CTPS5430DDAR
1N40072N2222IRFZ44NFGA25N120S8050M7(1N4007)SS14TIP122AO3400IKW40N120H3 1N40072N2222IRFZ44NFGA25N120S8050M7(1N4007)SS14TIP122AO3400IKW40N120H3
ATMEGA328P-AUESP8266-12ELM2596S-ADJBC547BIRLZ44NMCP2515-I/STSN65HVD230AD8232L293DTDA7297 ATMEGA328P-AUESP8266-12ELM2596S-ADJBC547BIRLZ44NMCP2515-I/STSN65HVD230AD8232L293DTDA7297
产品描述
🧪 SAMPLE SUPPORT ✅ 100% Original & Traceable 🚀 Inquiry Today, Ship Today 🛡️ Escrow.com Secured Payment

Product Overview

The CDCLVD110ARHBR is a high-performance, low-voltage differential signaling (LVDS) clock buffer from Texas Instruments. It is designed to distribute low-jitter clock signals with minimal skew and additive phase noise. The device features 10 LVDS outputs, each capable of driving 50-ohm transmission lines. It operates from a single 1.8V, 2.5V, or 3.3V supply and is housed in a compact 32-pin VQFN (5x5 mm) package. The CDCLVD110ARHBR is ideal for applications requiring precise clock distribution, such as telecommunications, data centers, and high-speed instrumentation.

Detailed Technical Specifications

Parameter Value
Number of Outputs 10 LVDS
Supply Voltage 1.8V, 2.5V, 3.3V
Output Frequency (Max) 1.5 GHz
Additive RMS Jitter (12 kHz – 20 MHz) 0.2 ps (typ)
Output Skew 20 ps (max)
Propagation Delay 1.5 ns (typ)
Operating Temperature -40°C to +85°C
Package 32-VQFN (5x5 mm)

Key Features

  • 10 LVDS outputs with low skew and jitter
  • Supports 1.8V, 2.5V, and 3.3V supply voltages
  • Wide operating frequency range up to 1.5 GHz
  • Additive RMS jitter as low as 0.2 ps
  • Output skew less than 20 ps
  • Fail-safe input for LVDS, LVPECL, and HCSL
  • Small 5x5 mm VQFN package
  • Industrial temperature range

Target Applications

  • 5G base stations (e.g., clock distribution for RF transceivers)
  • Automotive infotainment and dashboard systems
  • Data center switches and routers
  • High-speed ADC/DAC clocking
  • Test and measurement equipment
  • FPGA and ASIC clock distribution

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for CDCLVD110ARHBR. Our core advantages include:

  • 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
  • In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
  • HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
  • Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
  • BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

  • 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
  • RoHS Compliant: All electronic components comply with international environmental and safety standards.
  • Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

CDCLVD110ARHBR 是德州儀器(TI)推出的一款高性能、低電壓差分信號(LVDS)時鐘緩衝器。它專為分配低抖動時鐘信號而設計,具有最小的偏斜和附加相位噪聲。該器件提供10個LVDS輸出,每個輸出均可驅動50歐姆傳輸線。它支持1.8V、2.5V或3.3V單電源供電,並採用緊湊的32引腳VQFN(5x5 mm)封裝。CDCLVD110ARHBR 非常適合需要精確時鐘分配的應用,如電信、數據中心和高精度儀器。

詳細技術參數

參數 數值
輸出數量 10 LVDS
電源電壓 1.8V, 2.5V, 3.3V
最高輸出頻率 1.5 GHz
附加RMS抖動(12 kHz – 20 MHz) 0.2 ps(典型值)
輸出偏斜 20 ps(最大值)
傳播延遲 1.5 ns(典型值)
工作溫度範圍 -40°C 至 +85°C
封裝 32-VQFN(5x5 mm)

核心特性

  • 10個LVDS輸出,低偏斜和低抖動
  • 支持1.8V、2.5V和3.3V電源電壓
  • 寬工作頻率範圍,最高達1.5 GHz
  • 附加RMS抖動低至0.2 ps
  • 輸出偏斜小於20 ps
  • 支持LVDS、LVPECL和HCSL的故障安全輸入
  • 小型5x5 mm VQFN封裝
  • 工業級溫度範圍

典型應用場景

  • 5G基站(例如,射頻收發器的時鐘分配)
  • 汽車信息娛樂和儀表板系統
  • 數據中心交換機和路由器
  • 高速ADC/DAC時鐘
  • 測試和測量設備
  • FPGA和ASIC時鐘分配

環球供應鏈與批發合作夥伴方案

在 Jasin Chip,我們為 CDCLVD110ARHBR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括:

  • 全天候環球客戶支援:專業團隊為您提供即時報價及技術支援,無需漫長等待。
  • 現貨庫存,即日發貨:確保現貨充足。下午 4 點前確認訂單,即可安排當天寄出。
  • 深港聯動,結算靈活:深圳直發全球,物流高效可靠;支援香港銀行戶口轉賬及多幣種結算。
  • Escrow 擔保交易:支援 Escrow.com 平台交易,保障買賣雙方權益,小批量訂單亦可安心在線下單。
  • BOM 配單與樣板服務:提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨,具備完善的品質保證及產品可追溯性。

  • 100% 原廠正貨:承諾所有供應零件均為原裝現貨,品質嚴格把關,來源清晰可追溯。
  • 符合 RoHS 認證:所有電子元器件均符合國際環保標準及相關安全認證。
  • 原廠封裝保護:嚴格保留原廠原始包裝及封條,確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨,提供 BOM 配單及現貨庫存支援,歡迎查詢。
