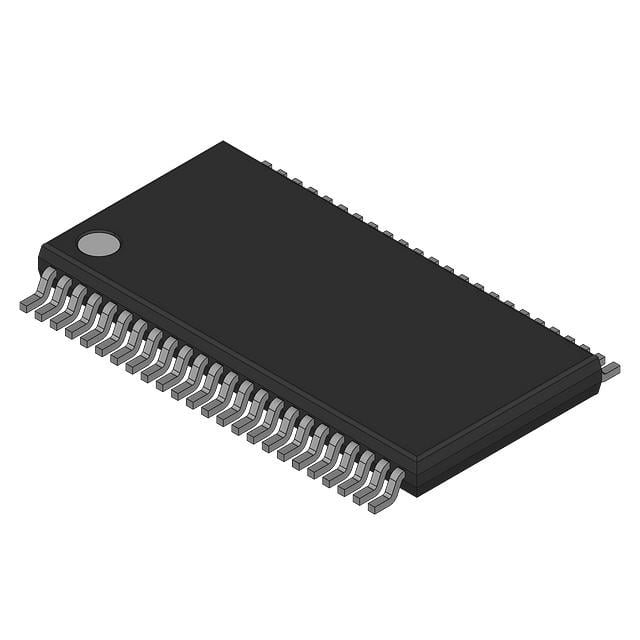

CY74FCT162244CTPAC TI Buffer/Driver | 16-bit, 3-State, 4.5V-5.5V

Product Overview

The CY74FCT162244CTPAC from Texas Instruments is a high-performance, 16-bit buffer and line driver designed for 5V logic systems. It features 3-state outputs, making it ideal for bus-oriented applications. The device is organized as two independent 8-bit buffers with separate output enable signals, providing flexibility in data flow control. With a typical propagation delay of 4.1 ns and high drive capability (±24 mA output drive), it ensures fast and reliable signal transmission in demanding environments.

Detailed Technical Specifications

Key Features

• 16-bit buffer/line driver with 3-state outputs
• Two independent 8-bit buffers with separate output enable (OE) inputs
• High drive capability: ±24 mA at output
• Fast propagation delay: 4.1 ns typical
• Low power consumption: ICC of 500 µA (max)
• Input hysteresis for improved noise margin
• ESD protection exceeds 2000V per MIL-STD-883, Method 3015
• Available in 48-pin TSSOP package

Target Applications

• 5G base station control boards for signal buffering
• Automotive dashboard display interfaces
• Industrial automation PLC I/O modules
• Data communication routers and switches
• Memory address drivers in server motherboards

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for CY74FCT162244CTPAC. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

CY74FCT162244CTPAC 是德州儀器（TI）推出的一款高性能16位緩衝器和線路驅動器，專為5V邏輯系統設計。它具有三態輸出，非常適合匯流排導向的應用。該器件由兩個獨立的8位緩衝器組成，帶有獨立的輸出使能信號，提供數據流控制的靈活性。典型傳播延遲為4.1 ns，高驅動能力（±24 mA輸出驅動），確保在苛刻環境中快速可靠的信號傳輸。

詳細技術參數

核心特性

• 16位緩衝器/線路驅動器，帶三態輸出
• 兩個獨立的8位緩衝器，帶有獨立的輸出使能（OE）輸入
• 高驅動能力：±24 mA 輸出
• 快速傳播延遲：典型值4.1 ns
• 低功耗：ICC 最大500 µA
• 輸入遲滯，改善噪聲容限
• ESD保護超過2000V（符合MIL-STD-883方法3015）
• 提供48-pin TSSOP封裝

典型應用場景

• 5G基站控制板的信號緩衝
• 汽車儀表板顯示接口
• 工業自動化PLC I/O模塊
• 數據通信路由器和交換機
• 服務器主板中的存儲器地址驅動器

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 CY74FCT162244CTPAC 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
