CY74FCT162245ETPAC TI Bus Transceiver | 16-bit | 3.3V, 5V Tolerant

Product Overview

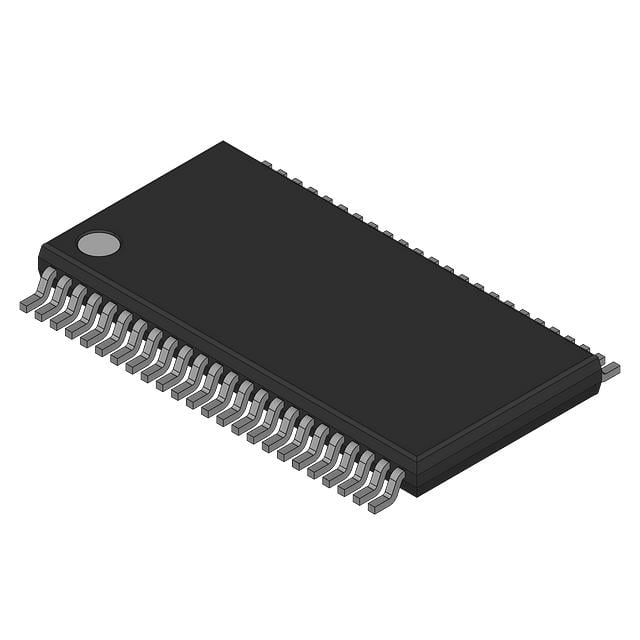

The CY74FCT162245ETPAC is a high-performance 16-bit bus transceiver from Texas Instruments, designed for bidirectional asynchronous communication between two data buses. It operates with a 3.3V supply voltage while being 5V tolerant on inputs, making it suitable for mixed-voltage systems. The device features non-inverting outputs and offers high drive capability with typical output drive of ±24 mA at 3.3V. Packaged in a 48-pin TSSOP (Thin Shrink Small Outline Package), it is ideal for space-constrained applications requiring high-speed data transfer.

Detailed Technical Specifications

Key Features

• Bidirectional 16-bit bus transceiver with non-inverting outputs
• 3.3V operation with 5V tolerant inputs
• High drive capability: ±24 mA at 3.3V
• Low propagation delay: 4.1 ns typical
• Power-down high-impedance outputs
• ESD protection exceeds 2000V HBM
• Available in 48-pin TSSOP package

Target Applications

The CY74FCT162245ETPAC is ideal for a variety of applications requiring high-speed data bus interfacing. Specific examples include:

• 5G Base Stations: Used for data bus isolation and level translation between baseband processors and RF transceivers.
• Automotive Dashboard Systems: Facilitates communication between microcontrollers and display modules in infotainment clusters.
• Industrial Automation: Interfaces between PLCs and sensor arrays in factory environments.
• Networking Equipment: Data bus buffering in routers and switches for signal integrity.
• Medical Imaging Devices: Connects image processors to memory modules in MRI or CT scanners.
