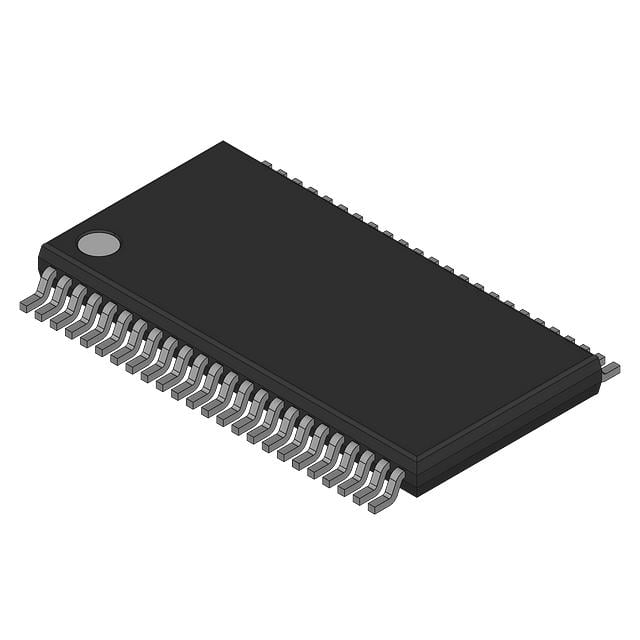

CY74FCT16245TPAC TI Bus Transceiver | 16-bit | 3-State, 4.5V-5.5V

Product Overview

The CY74FCT16245TPAC from Texas Instruments is a 16-bit (dual 8-bit) non-inverting bus transceiver designed for bidirectional asynchronous communication between two data buses. It features 3-state outputs and operates from a single 5V supply (4.5V to 5.5V). The device is ideal for driving high-capacitance loads and is available in a TSSOP package. It offers high drive capability (64 mA sink, 32 mA source) and low propagation delay (typical 4.1 ns).

Detailed Technical Specifications

Key Features

• 16-bit bidirectional bus transceiver with 3-state outputs
• Non-inverting data paths
• High drive capability: 64 mA sink, 32 mA source
• Low propagation delay: 4.1 ns typical
• Wide operating voltage: 4.5V to 5.5V
• Input hysteresis for noise immunity
• Flow-through pinout for easy PCB layout
• ESD protection exceeds 2000V HBM

Target Applications

• 5G base station control boards (e.g., data bus isolation)
• Automotive dashboard display modules (e.g., CAN bus interface)
• Industrial PLC I/O modules (e.g., backplane communication)
• Telecommunications switching equipment (e.g., line card data paths)
• Medical imaging systems (e.g., FPGA-to-processor bus bridging)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for CY74FCT16245TPAC. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
