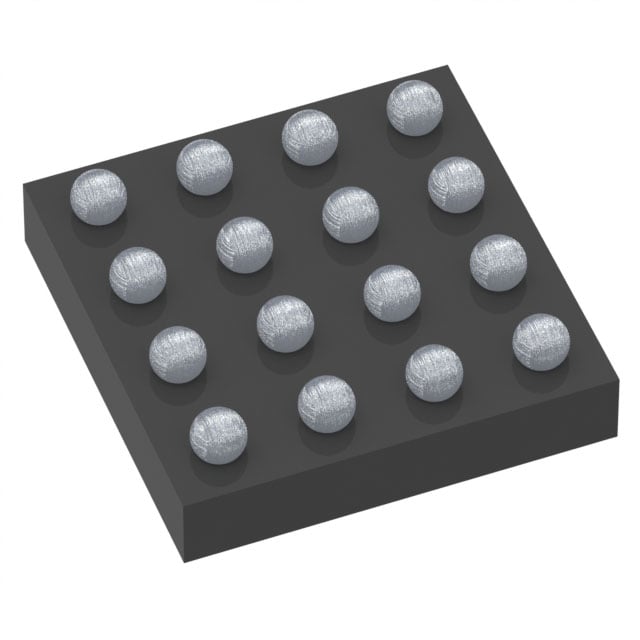

DAC530A2YBHR TI DAC | 16-DSBGA (1.62X1.62) | 10-Bit, 1 LSB INL, 1.8V

Product Overview

The DAC530A2YBHR is a high-performance, 10-bit digital-to-analog converter (DAC) from Texas Instruments, designed for precision control and signal generation in space-constrained applications. Housed in a compact 16-DSBGA (1.62x1.62 mm) package, it offers excellent linearity with 1 LSB INL and operates from a single 1.8V supply. The device features a 2-wire I2C interface, internal reference, and power-on reset to zero-scale, making it ideal for battery-powered and portable systems.

Detailed Technical Specifications

Key Features

• 10-bit resolution with 1 LSB INL/0.5 LSB DNL
• Wide supply range: 1.71V to 5.5V
• I2C interface with up to 3.4 MHz
• Internal 1.2V reference (10 ppm/°C drift)
• Power-on reset to zero-scale
• Ultra-small 16-DSBGA package (1.62x1.62 mm)
• Low power: 0.5 mW at 1.8V

Target Applications

• 5G base station: bias control for power amplifiers
• Automotive dashboard: display brightness control
• Portable medical devices: sensor calibration
• Industrial automation: programmable logic controllers
• Consumer electronics: audio volume control

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for DAC530A2YBHR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

DAC530A2YBHR 是德州儀器推出的一款高性能10位數字模擬轉換器（DAC），專為空間受限應用中的精確控制和信號生成而設計。採用緊湊的16-DSBGA（1.62x1.62 mm）封裝，具有1 LSB INL的出色線性度，並可在單一1.8V電源下工作。該器件配備2線I2C接口、內部基準電壓和上電復位至零刻度，非常適合電池供電和便攜式系統。

詳細技術參數

核心特性

• 10位分辨率，INL為1 LSB，DNL為0.5 LSB
• 寬電源範圍：1.71V 至 5.5V
• I2C接口，最高3.4 MHz
• 內部1.2V基準（10 ppm/°C漂移）
• 上電復位至零刻度
• 超小16-DSBGA封裝（1.62x1.62 mm）
• 低功耗：1.8V時0.5 mW

典型應用場景

• 5G基站：功率放大器的偏置控制
• 汽車儀表板：顯示亮度控制
• 便攜式醫療設備：傳感器校準
• 工業自動化：可編程邏輯控制器
• 消費電子：音頻音量控制

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 DAC530A2YBHR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
