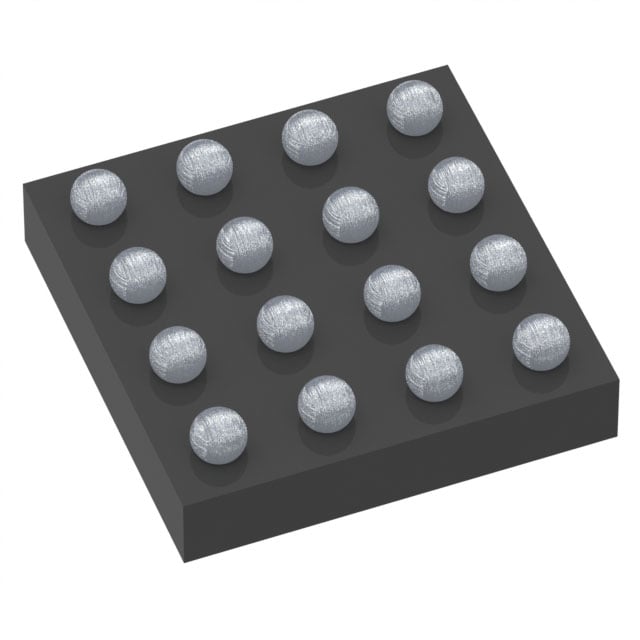

DAC53204YBHR TI DAC | 16-DSBGA (1.62X1.62) | 4-Ch, 10-Bit, I2C/SPI

Product Overview

The DAC53204YBHR from Texas Instruments is a 4-channel, 10-bit, buffered voltage-output digital-to-analog converter (DAC) in a compact 16-DSBGA (1.62 mm x 1.62 mm) package. It operates from a single 2.7V to 5.5V supply and features I2C and SPI interfaces, making it ideal for space-constrained applications requiring multiple DAC channels.

Detailed Technical Specifications

Key Features

• 4-channel, 10-bit DAC with buffered output
• Small 16-DSBGA package (1.62 mm x 1.62 mm)
• Wide supply range: 2.7V to 5.5V
• I2C and SPI interface options
• Internal reference (1.25V, 2.048V, 2.5V) or external reference
• Low power consumption: 0.5 mA per channel at 3V
• Power-on reset to zero-scale or mid-scale
• Rail-to-rail output operation
• User-programmable output slew rate

Target Applications

• 5G base station: bias control for power amplifiers
• Automotive dashboard: gauge and indicator control
• Industrial automation: PLC analog output modules
• Medical devices: patient monitoring systems
• Test and measurement: programmable voltage sources

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for DAC53204YBHR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

DAC53204YBHR 是德州儀器（TI）的一款4通道、10位、緩衝電壓輸出數模轉換器（DAC），採用緊湊的16-DSBGA（1.62 mm x 1.62 mm）封裝。它可在2.7V至5.5V的單電源下工作，並支持I2C和SPI接口，非常適合需要多通道DAC的空間受限應用。

詳細技術參數

核心特性

• 4通道、10位DAC，帶緩衝輸出
• 小巧的16-DSBGA封裝（1.62 mm x 1.62 mm）
• 寬電源範圍：2.7V至5.5V
• 支持I2C和SPI接口
• 內部參考（1.25V、2.048V、2.5V）或外部參考
• 低功耗：3V時每通道0.5 mA
• 上電復位至零標度或中標度
• 軌到軌輸出操作
• 用戶可編程輸出壓擺率

典型應用場景

• 5G基站：功率放大器的偏置控制
• 汽車儀表盤：儀表和指示燈控制
• 工業自動化：PLC模擬輸出模塊
• 醫療設備：病人監護系統
• 測試與測量：可編程電壓源

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 DAC53204YBHR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
