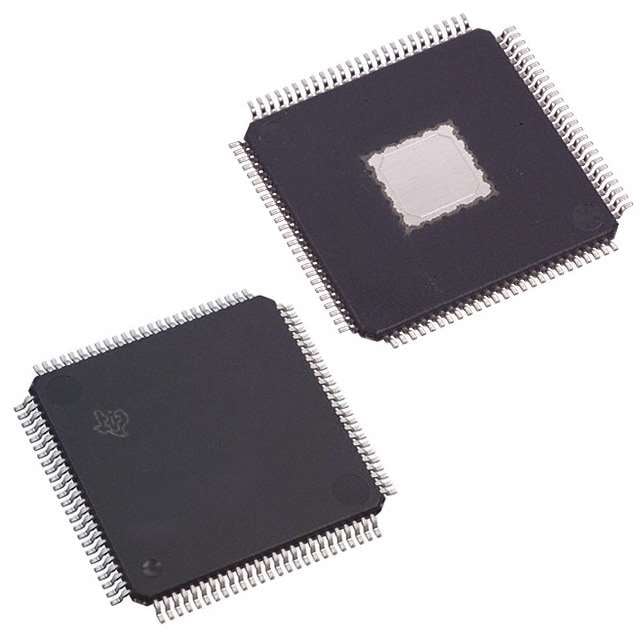

DAC5686IPZPG4 TI DAC | 100-HTQFP (14x14) | 16-Bit, 800 MSPS, 2-Ch

Product Overview

The DAC5686IPZPG4 is a high-performance, dual-channel, 16-bit digital-to-analog converter (DAC) from Texas Instruments. It offers a sampling rate of up to 800 MSPS, making it ideal for demanding applications such as communications infrastructure, test and measurement equipment, and radar systems. The device is housed in a 100-pin HTQFP package (14x14 mm) and features a flexible LVDS data interface, internal voltage reference, and programmable output current.

Detailed Technical Specifications

Key Features

• 16-bit resolution with 800 MSPS update rate
• Dual-channel operation for I/Q modulation
• LVDS data interface with on-chip termination
• Internal 1.2 V reference with external reference option
• Programmable output current from 2 mA to 20 mA
• Low glitch energy: 1 pV-s
• Power-down mode for reduced power consumption

Target Applications

• 5G base station transmitters (e.g., massive MIMO)
• Software-defined radio (SDR) systems
• Arbitrary waveform generators (AWG)
• Radar and electronic warfare systems
• Medical imaging equipment (e.g., ultrasound beamforming)
• Automotive radar and lidar systems
