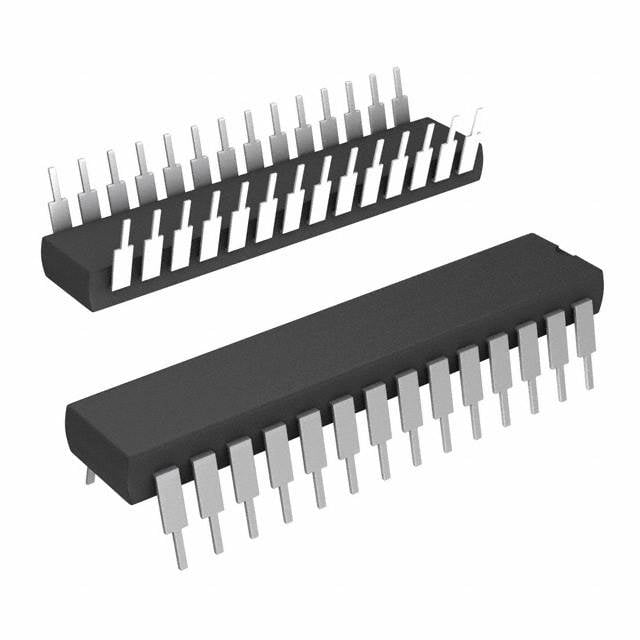

DAC712PB TI DAC | 28-PDIP | 16-Bit, 100ksps, ±10V Output

Product Overview

The DAC712PB is a high-performance 16-bit digital-to-analog converter (DAC) from Texas Instruments, designed for precision industrial and instrumentation applications. Housed in a 28-pin PDIP package, it offers a voltage output range of ±10V with a settling time of 10µs (typical) and a maximum conversion rate of 100ksps. The device operates from a single +5V supply and features an internal precision reference, making it ideal for closed-loop control systems, automated test equipment, and waveform generation.

Detailed Technical Specifications

Key Features

• 16-bit monotonic performance over temperature
• Internal precision 2.5V reference
• Low power consumption: 150mW (typ)
• Double-buffered data inputs for simultaneous update
• Asynchronous clear function
• Wide output swing: ±10V
• Industry-standard 28-pin PDIP package

Target Applications

• Industrial process control (e.g., PLC analog output modules)
• Automated test equipment (e.g., signal generators for ATE)
• Motor control systems (e.g., servo drive control)
• Data acquisition systems (e.g., precision waveform output)
• Medical instrumentation (e.g., patient monitoring equipment)
• 5G base station calibration (e.g., RF bias control)
• Automotive dashboard display (e.g., analog gauge drivers)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for DAC712PB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
