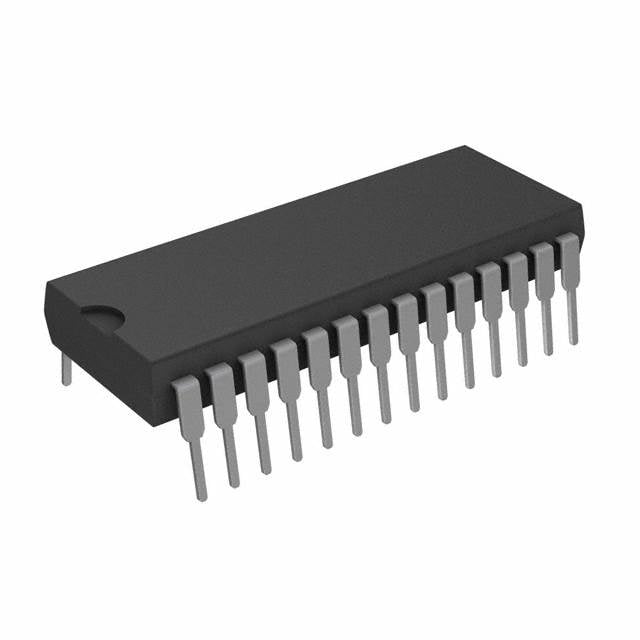

DAC7625PB TI Quad 12-Bit DAC | 28-PDIP | 10us Settling, ±10V Output

Product Overview

The DAC7625PB is a quad, 12-bit digital-to-analog converter (DAC) from Texas Instruments. It features four independent DACs with output amplifiers, reference buffers, and a parallel interface. The device operates from a single +5V supply and provides a ±10V output swing. Housed in a 28-pin PDIP package, it is ideal for industrial control, test equipment, and data acquisition systems requiring multiple analog outputs.

Detailed Technical Specifications

Key Features

• Four 12-bit DACs in one package
• Single +5V supply operation
• ±10V output swing with internal reference
• Fast settling time: 10 µs
• Parallel interface for easy microcontroller connection
• Low power consumption: 20 mW (typical)
• Monotonic over temperature
• 28-pin PDIP package for through-hole assembly

Target Applications

• Industrial process control (e.g., PLC analog output modules)
• Automated test equipment (ATE) for multi-channel signal generation
• Data acquisition systems with multiple analog outputs
• Motor control in robotics (e.g., servo drive reference signals)
• 5G base station power amplifier bias control
• Automotive dashboard display calibration

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for DAC7625PB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
