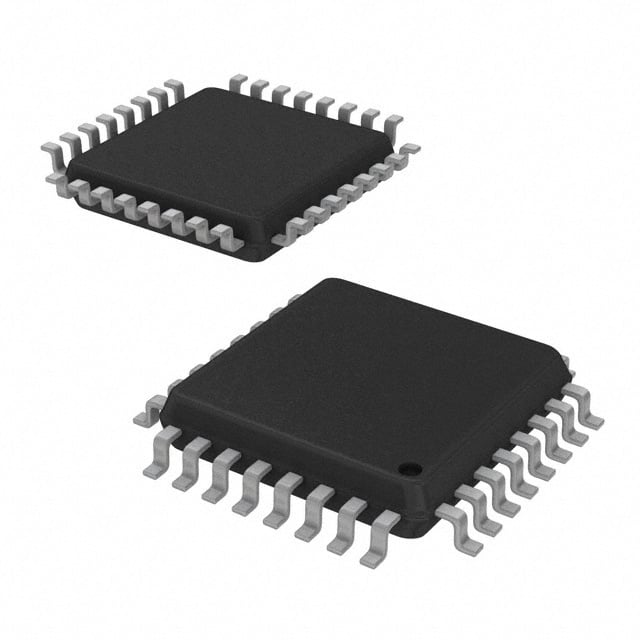

DAC7642VFT TI DAC | 32-LQFP (7x7) | 16-Bit, 4-Ch, Serial

Product Overview

The DAC7642VFT is a 16-bit, 4-channel, serial-input, voltage-output digital-to-analog converter (DAC) from Texas Instruments. It operates from a single +5V supply and features a low-power consumption of typically 2.5 mW per channel. The device includes an internal reference (2.5V) and a power-on reset circuit that ensures the DAC outputs are at zero scale when power is applied. The serial interface is compatible with SPI, QSPI, Microwire, and DSP interfaces, making it easy to integrate into various systems. The DAC7642VFT is available in a compact 32-lead LQFP package (7x7 mm) for space-constrained applications.

Detailed Technical Specifications

Key Features

• 16-bit monotonic performance over temperature
• Low power: 2.5 mW per channel (typical)
• Internal 2.5V reference with 10 ppm/°C drift
• Power-on reset to zero scale
• Double-buffered input registers for simultaneous update
• Asynchronous reset (CLR) to zero scale
• SPI-compatible serial interface up to 20 MHz
• Small 32-lead LQFP package

Target Applications

• Industrial process control (e.g., PLC analog output modules)
• Automotive infotainment and dashboard displays
• 5G base station power amplifier biasing
• Medical instrumentation (e.g., patient monitoring systems)
• Test and measurement equipment (e.g., arbitrary waveform generators)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for DAC7642VFT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

DAC7642VFT 是德州儀器（TI）推出的一款16位、4通道、串行輸入、電壓輸出的數模轉換器（DAC）。它採用單一+5V電源供電，每通道典型功耗僅2.5 mW。器件包含內部基準（2.5V）和上電復位電路，確保上電時DAC輸出為零刻度。串行接口兼容SPI、QSPI、Microwire和DSP接口，易於集成到各種系統中。DAC7642VFT採用緊湊的32引腳LQFP封裝（7x7 mm），適用於空間受限的應用。

詳細技術參數

核心特性

• 在整個溫度範圍內保持16位單調性
• 低功耗：每通道2.5 mW（典型值）
• 內部2.5V基準，漂移10 ppm/°C
• 上電復位至零刻度
• 雙緩衝輸入寄存器，支持同步更新
• 異步復位（CLR）至零刻度
• SPI兼容串行接口，最高20 MHz
• 小型32引腳LQFP封裝

典型應用場景

• 工業過程控制（例如PLC模擬輸出模塊）
• 汽車信息娛樂系統和儀表盤顯示
• 5G基站功率放大器偏置
• 醫療儀器（例如病人監護系統）
• 測試與測量設備（例如任意波形發生器）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 DAC7642VFT 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
