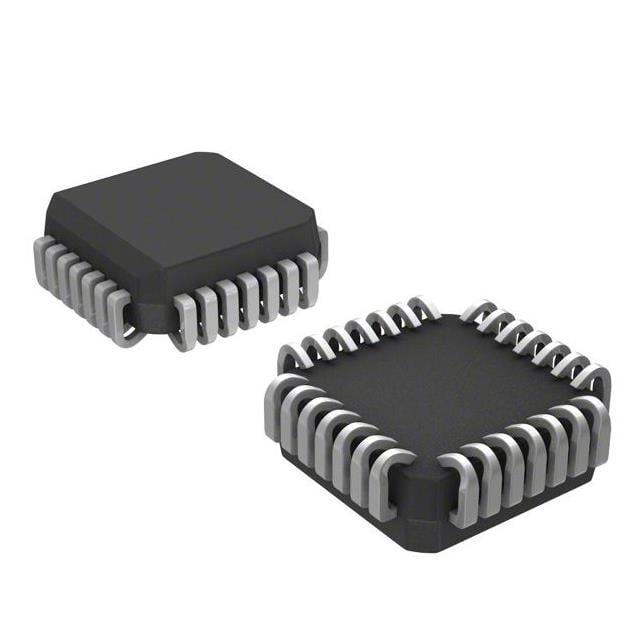

DAC7724NB TI Digital-to-Analog Converter | 28-PLCC (11.51X11.51) | 12-Bit, Quad Channel, ±10V Output

Product Overview

The DAC7724NB is a 12-bit, quad-channel digital-to-analog converter (DAC) from Texas Instruments. It features four independent DACs with output voltage ranges of ±10V, making it ideal for industrial control and automation systems. The device operates from a single +15V or dual ±15V supply and includes a high-speed parallel interface for easy connection to microprocessors. Housed in a 28-pin PLCC package (11.51x11.51 mm), it offers a compact solution for multi-channel analog output applications.

Detailed Technical Specifications

Key Features

• Four independent 12-bit DACs in one package
• Bipolar output: ±10V
• Single +15V or dual ±15V supply operation
• High-speed parallel interface with double-buffered inputs
• Low power consumption: 250 mW (typical)
• Monotonic over temperature
• On-chip output amplifiers with short-circuit protection
• Available in 28-pin PLCC package

Target Applications

• Industrial process control (e.g., PLC analog output modules)
• Motor control systems (e.g., servo drive control)
• Automated test equipment (ATE) for multi-channel signal generation
• Data acquisition systems with analog output
• 5G base station power amplifier bias control
• Automotive dashboard display calibration
• Medical instrumentation (e.g., patient monitoring systems)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for DAC7724NB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
