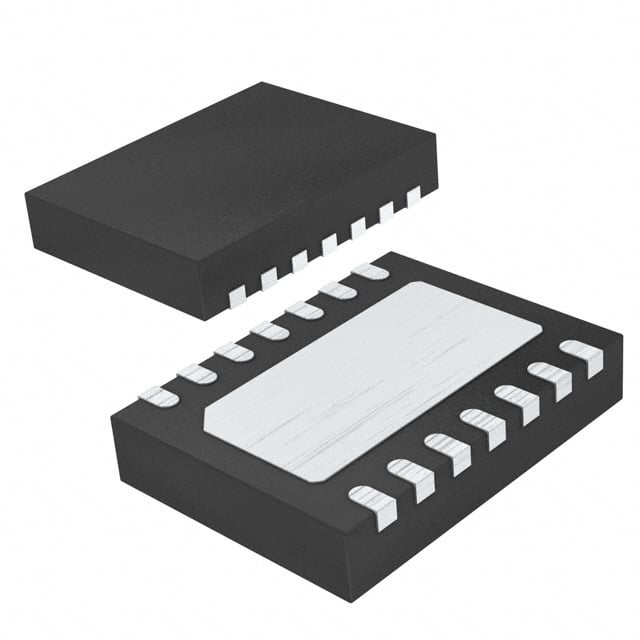

DAC80004IDMDT TI DAC | 14-VSON（4X3） | 16-Bit, 4-Ch, Low-Power

Product Overview

The DAC80004IDMDT is a 16-bit, quad-channel, low-power, voltage-output digital-to-analog converter (DAC) from Texas Instruments. It operates from a single 2.7V to 5.5V supply and features a precision internal reference (2.5V, 10 ppm/°C max) and a rail-to-rail output buffer. The device communicates via a 4-wire SPI interface (up to 50 MHz) and includes a power-on reset to zero-scale or mid-scale. Housed in a compact 14-pin VSON (4mm x 3mm) package, it is ideal for space-constrained applications requiring multiple DAC channels.

Detailed Technical Specifications

Key Features

• 16-bit monotonic performance
• Low power: 0.5 mW per channel at 3V
• Internal reference: 2.5V, 10 ppm/°C drift
• Rail-to-rail output buffer
• Power-on reset to zero-scale or mid-scale
• SPI interface with daisy-chain capability
• Small package: 14-VSON (4mm x 3mm)

Target Applications

• 5G base station: control of variable gain amplifiers (VGAs) and attenuators
• Automotive dashboard: precision voltage references for sensor calibration
• Industrial automation: programmable logic controllers (PLCs) and process control
• Medical equipment: patient monitoring and diagnostic devices
• Test and measurement: arbitrary waveform generation and data acquisition systems

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for DAC80004IDMDT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

DAC80004IDMDT 是一款 16 位、四通道、低功耗、电压输出型数模转换器 (DAC)，来自德州仪器 (TI)。它采用 2.7V 至 5.5V 单电源供电，内置精密基准电压源（2.5V，最大温漂 10 ppm/°C）和轨到轨输出缓冲器。该器件通过 4 线 SPI 接口（最高 50 MHz）通信，并具有上电复位至零电平或中间电平功能。采用紧凑的 14 引脚 VSON（4mm x 3mm）封装，非常适合需要多通道 DAC 的空间受限应用。

詳細技術參數

核心特性

• 16 位单调性能
• 低功耗：3V 时每通道 0.5 mW
• 内部基准：2.5V，温漂 10 ppm/°C
• 轨到轨输出缓冲器
• 上电复位至零电平或中间电平
• SPI 接口，支持菊花链
• 小封装：14-VSON（4mm x 3mm）

典型應用場景

• 5G 基站：控制可变增益放大器 (VGA) 和衰减器
• 汽车仪表盘：传感器校准的精密电压基准
• 工业自动化：可编程逻辑控制器 (PLC) 和过程控制
• 医疗设备：病人监护和诊断设备
• 测试与测量：任意波形发生器和数据采集系统

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 DAC80004IDMDT 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
