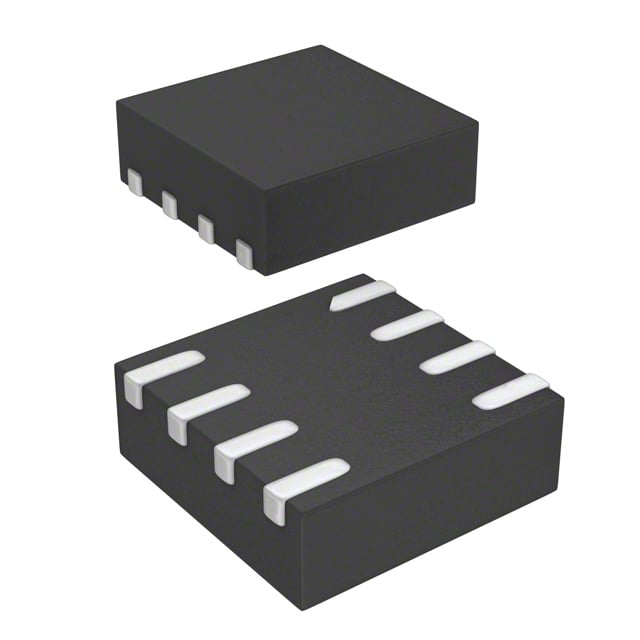

DAC80501MDQFT TI DAC | 8-WSON (2x2) | 16-Bit, 1-Ch, SPI, Low Power

Product Overview

The DAC80501MDQFT is a high-performance, 16-bit, single-channel digital-to-analog converter (DAC) from Texas Instruments. It operates from a 2.7V to 5.5V supply and features a precision internal reference (2.5V, 5 ppm/°C typical). The device communicates via a 4-wire SPI interface (up to 50 MHz) and is available in a compact 8-pin WSON package (2 mm × 2 mm). It offers excellent linearity (INL ±1 LSB max) and low power consumption (0.55 mW at 3V), making it ideal for space-constrained and battery-powered applications.

Detailed Technical Specifications

Key Features

• 16-bit monotonic performance
• Low power: 0.55 mW at 3V
• Integrated 2.5V reference with low drift
• Wide supply range: 2.7V to 5.5V
• High-speed SPI interface (50 MHz)
• Small footprint: 8-WSON (2 mm × 2 mm)
• Power-on reset to zero-scale
• Rail-to-rail output buffer

Target Applications

• 5G base station: RF power amplifier bias control
• Automotive dashboard: Instrument cluster display calibration
• Industrial automation: PLC analog output modules
• Medical devices: Patient monitoring system setpoint control
• Portable instrumentation: Battery-powered sensor calibration

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for DAC80501MDQFT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

DAC80501MDQFT 是德州儀器（TI）推出的一款高性能、16位、單通道數模轉換器（DAC）。它可在 2.7V 至 5.5V 電源下工作，並內置精密基準電壓源（2.5V，典型溫度係數 5 ppm/°C）。器件通過 4 線 SPI 接口（最高 50 MHz）進行通信，採用緊湊的 8 引腳 WSON 封裝（2 mm × 2 mm）。它具有出色的線性度（INL 最大 ±1 LSB）和低功耗（3V 時典型功耗 0.55 mW），非常適合空間受限和電池供電的應用。

詳細技術參數

核心特性

• 16 位單調性性能
• 低功耗：3V 時 0.55 mW
• 集成 2.5V 基準，低漂移
• 寬電源範圍：2.7V 至 5.5V
• 高速 SPI 接口（50 MHz）
• 小尺寸：8-WSON（2 mm × 2 mm）
• 上電復位至零電平
• 軌到軌輸出緩衝器

典型應用場景

• 5G 基站：射頻功率放大器偏置控制
• 汽車儀表盤：儀表組顯示校準
• 工業自動化：PLC 模擬輸出模塊
• 醫療設備：病人監護系統設定點控制
• 便攜式儀器：電池供電傳感器校準

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 DAC80501MDQFT 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
