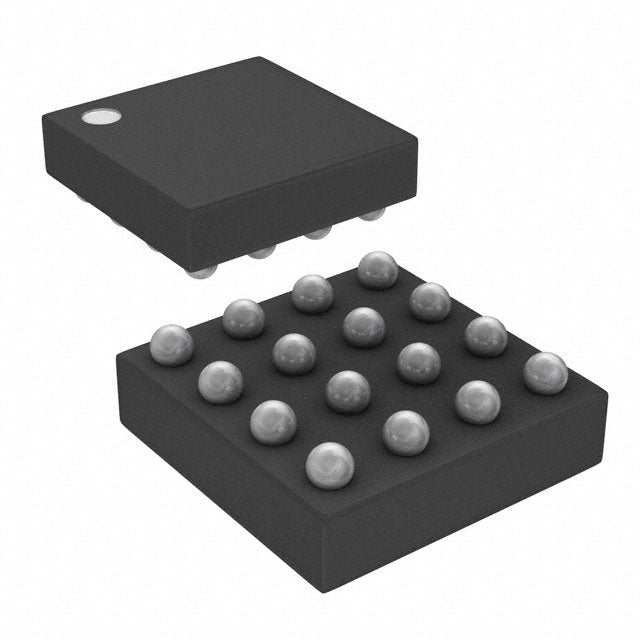

DAC80508ZCYZFT TI DAC | 16-DSBGA | 16-Bit, 8-Ch, Low-Power

Product Overview

The DAC80508ZCYZFT is a 16-bit, 8-channel, low-power, voltage-output digital-to-analog converter (DAC) from Texas Instruments. It operates from a single 2.7V to 5.5V supply and features a precision internal reference (2.5V, 5 ppm/°C drift) and a rail-to-rail output buffer. The device communicates via SPI interface and is available in a compact 16-DSBGA package (1.6mm x 1.6mm). It is designed for industrial control, test and measurement, and communication infrastructure applications.

Detailed Technical Specifications

Key Features

• 16-bit monotonic resolution with low INL/DNL
• 8 independent DAC channels with rail-to-rail output
• Integrated 2.5V reference with 5 ppm/°C drift
• Low power consumption: 0.5 mA/channel (typ)
• SPI interface with daisy-chain capability
• Power-on reset to zero-scale or mid-scale
• Small 16-DSBGA package for space-constrained designs

Target Applications

• Industrial automation: PLC analog output modules, process control (e.g., Siemens S7-1200)
• Test and measurement: Arbitrary waveform generators, data acquisition systems (e.g., Keysight DAQ970A)
• Communication infrastructure: 5G base station power amplifier bias control (e.g., Nokia AirScale)
• Automotive: Battery management systems, infotainment (e.g., Tesla Model 3 dashboard)
• Medical: Patient monitoring, infusion pumps (e.g., Baxter Sigma Spectrum)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for DAC80508ZCYZFT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

DAC80508ZCYZFT 是德州儀器（TI）推出的一款16位、8通道、低功耗、電壓輸出數模轉換器（DAC）。它可在2.7V至5.5V的單電源下工作，內置精密基準電壓源（2.5V，5 ppm/°C漂移）和軌到軌輸出緩衝器。器件通過SPI接口通信，採用緊湊的16-DSBGA封裝（1.6mm x 1.6mm）。適用於工業控制、測試測量和通信基礎設施等應用。

詳細技術參數

核心特性

• 16位單調分辨率，低INL/DNL
• 8個獨立DAC通道，軌到軌輸出
• 集成2.5V基準，漂移5 ppm/°C
• 低功耗：0.5 mA/通道（典型值）
• SPI接口，支持菊花鏈
• 上電復位至零標度或中標度
• 小型16-DSBGA封裝，節省空間

典型應用場景

• 工業自動化：PLC模擬輸出模塊、過程控制（例如西門子S7-1200）
• 測試與測量：任意波形發生器、數據採集系統（例如Keysight DAQ970A）
• 通信基礎設施：5G基站功放偏置控制（例如諾基亞AirScale）
• 汽車電子：電池管理系統、信息娛樂（例如特斯拉Model 3儀表盤）
• 醫療設備：病人監護儀、輸液泵（例如Baxter Sigma Spectrum）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 DAC80508ZCYZFT 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
