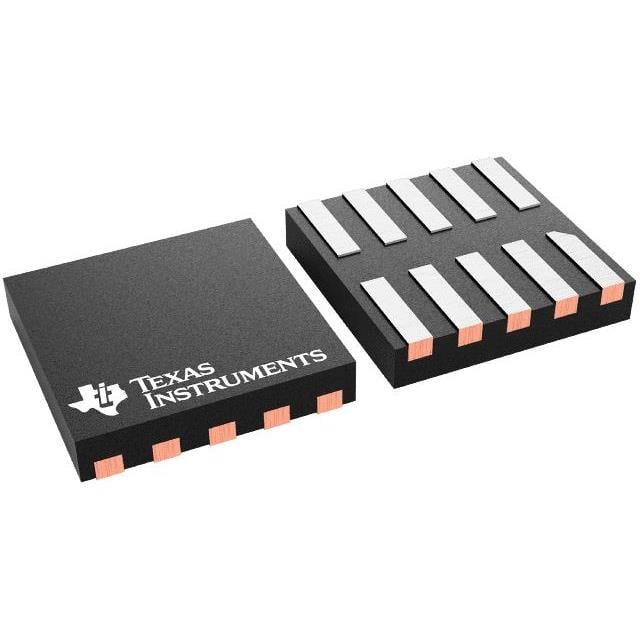

DAC82001DRXR TI DAC | 10-WSON (2.5X2.5) | 16-Bit, 1-Ch, Low Power

Product Overview

The DAC82001DRXR from Texas Instruments is a 16-bit, single-channel, voltage-output digital-to-analog converter (DAC) designed for low-power and high-precision applications. It operates from a single 2.7V to 5.5V supply and features a buffered output that can drive capacitive loads up to 100 pF. The device includes an internal reference (2.5V) and supports SPI interface with data rates up to 50 MHz. Housed in a compact 10-WSON (2.5x2.5 mm) package, it is ideal for space-constrained designs.

Detailed Technical Specifications

Key Features

• 16-bit monotonic resolution
• Low power consumption: 0.5 mW at 3V
• Internal 2.5V reference with 10 ppm/°C drift
• SPI interface with daisy-chain capability
• Power-on reset to zero-scale
• Small footprint: 2.5x2.5 mm WSON package

Target Applications

• 5G base station: RF power amplifier bias control
• Automotive dashboard: precision voltage reference for displays
• Industrial automation: programmable logic controller (PLC) analog output
• Medical equipment: patient monitoring system calibration
• Test and measurement: arbitrary waveform generation

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for DAC82001DRXR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

DAC82001DRXR 是德州儀器（TI）推出的一款16位、單通道、電壓輸出數模轉換器（DAC），專為低功耗和高精度應用設計。它可在2.7V至5.5V的單電源下工作，並具有可驅動高達100 pF容性負載的緩衝輸出。該器件包含內部基準（2.5V），支持最高50 MHz數據速率的SPI接口。採用緊湊的10-WSON（2.5x2.5 mm）封裝，非常適合空間受限的設計。

詳細技術參數

核心特性

• 16位單調性分辨率
• 低功耗：3V時僅0.5 mW
• 內部2.5V基準，漂移10 ppm/°C
• SPI接口，支持菊花鏈
• 上電復位至零刻度
• 小尺寸：2.5x2.5 mm WSON封裝

典型應用場景

• 5G基站：射頻功率放大器偏置控制
• 汽車儀表盤：顯示器精密電壓基準
• 工業自動化：可編程邏輯控制器（PLC）模擬輸出
• 醫療設備：病人監護系統校準
• 測試與測量：任意波形生成

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 DAC82001DRXR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
