DRV8212DSGR TI Motor Driver | 8-WSON（2X2） | 1.65-11V, 1.5A

Product Overview

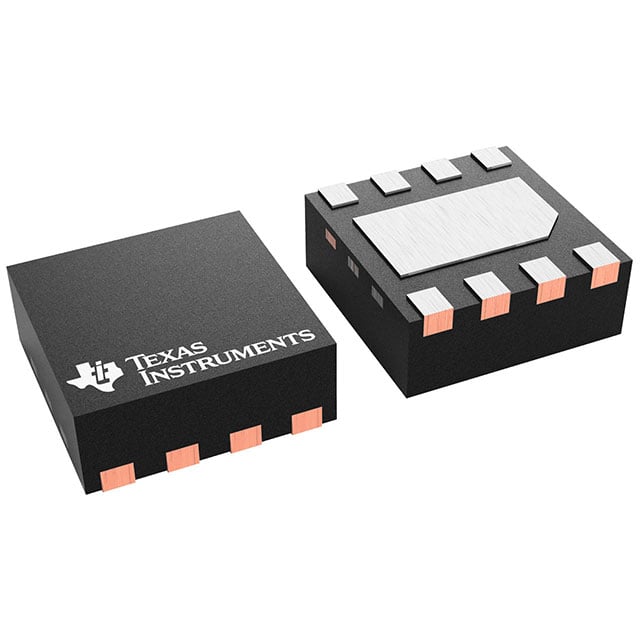

The DRV8212DSGR from Texas Instruments is a low-voltage H-bridge motor driver IC designed for driving one brushed DC motor or one winding of a stepper motor. It operates from a supply voltage range of 1.65 V to 11 V and can deliver up to 1.5 A of continuous output current. The device integrates a charge pump regulator to support 100% duty cycle operation with low dropout, making it ideal for battery-powered applications. The DRV8212DSGR is available in a compact 8-pin WSON package (2 mm × 2 mm) with an exposed thermal pad for enhanced heat dissipation.

Detailed Technical Specifications

Key Features

• Wide supply voltage range: 1.65 V to 11 V
• Low RDS(on): 400 mΩ (HS + LS) at 25°C
• Integrated charge pump for 100% duty cycle support
• Low sleep current: < 1 µA
• Small package: 8-WSON (2 mm × 2 mm)
• Protection: Overcurrent, overtemperature, undervoltage lockout
• Simple control: PH/EN or PWM interface

Target Applications

• Battery-powered devices: Smart locks, portable printers, robotic toys
• Industrial automation: Valve control, actuator drivers
• Consumer electronics: Camera lens positioning, haptic feedback
• Automotive: Dashboard actuators, mirror adjustment
• 5G base stations: Antenna tilt control
