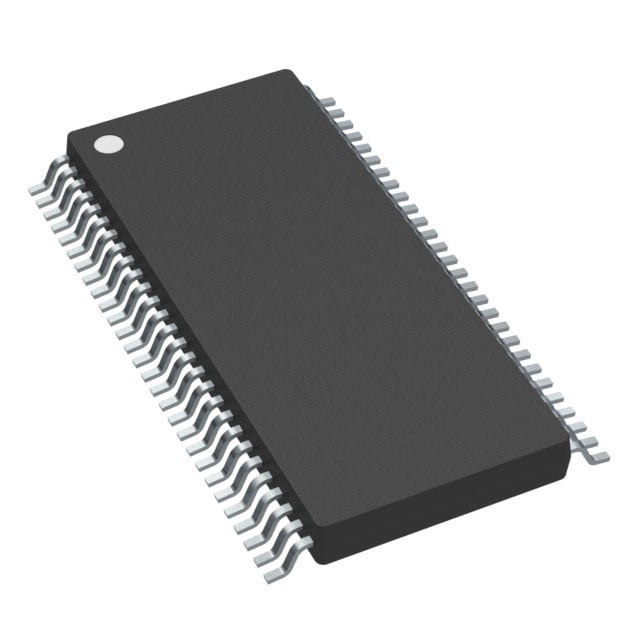

DRV8301QDCAQ1 TI Motor Driver | 56-HTSSOP | 3-Phase, 1.5A Gate Drive

Product Overview

The DRV8301QDCAQ1 is a three-phase gate driver IC from Texas Instruments, designed for automotive and industrial motor control applications. It integrates three independent half-bridge gate drivers capable of driving high-side and low-side N-channel MOSFETs. The device operates from a supply voltage of 6V to 60V and provides up to 1.5A peak gate drive current. It features a bootstrap diode for high-side gate drive, integrated current shunt amplifier, and protection features including overcurrent, undervoltage lockout, and overtemperature shutdown. The DRV8301QDCAQ1 is qualified to AEC-Q100 for automotive applications and is available in a 56-pin HTSSOP package with PowerPAD for enhanced thermal performance.

Detailed Technical Specifications

Key Features

• Three independent half-bridge gate drivers
• Bootstrap diode for high-side gate drive
• Integrated current shunt amplifier with adjustable gain
• Protection: overcurrent, undervoltage lockout, overtemperature, shoot-through prevention
• 3.3V and 5V logic compatible
• Low-power sleep mode
• Automotive qualified (AEC-Q100)

Target Applications

• Automotive: Electric power steering (EPS), engine cooling fans, oil pumps, water pumps
• Industrial: Brushless DC (BLDC) motor drives, servo drives, robotics
• Specific examples: 5G base station cooling fans, automotive dashboard actuators, HVAC blowers
