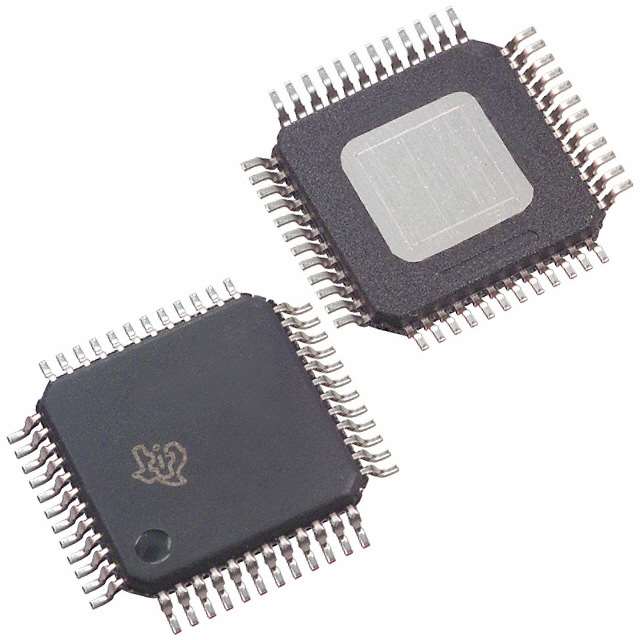

DRV8305NQPHPQ1 TI Motor Driver | 48-HTQFP (7x7) | 3-Phase, 1.3A Gate Drive

Product Overview

The DRV8305NQPHPQ1 is a three-phase gate driver IC from Texas Instruments, designed for automotive and industrial motor control applications. It integrates three half-bridge gate drivers capable of driving high-side and low-side N-channel MOSFETs. The device operates from a supply voltage of 4.9V to 45V and provides up to 1.3A source and 2.6A sink peak gate drive current. It features a SPI interface for configuration and diagnostics, making it suitable for brushless DC (BLDC) and permanent magnet synchronous motors (PMSM). The package is a 48-pin HTQFP with exposed pad for thermal dissipation.

Detailed Technical Specifications

Key Features

• Three-phase gate driver with bootstrap diodes
• SPI for device configuration and diagnostics
• Integrated charge pump for 100% duty cycle
• Adjustable dead time
• Overcurrent, overtemperature, and undervoltage lockout protection
• AEC-Q100 qualified for automotive applications

Target Applications

• Automotive: Electric power steering (EPS), engine cooling fans, oil pumps
• Industrial: Robotics, CNC spindle drives, servo drives
• Consumer: Power tools, home appliances
• Specific examples: 5G base station cooling fans, automotive dashboard blowers, industrial conveyor belt motors

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for DRV8305NQPHPQ1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
