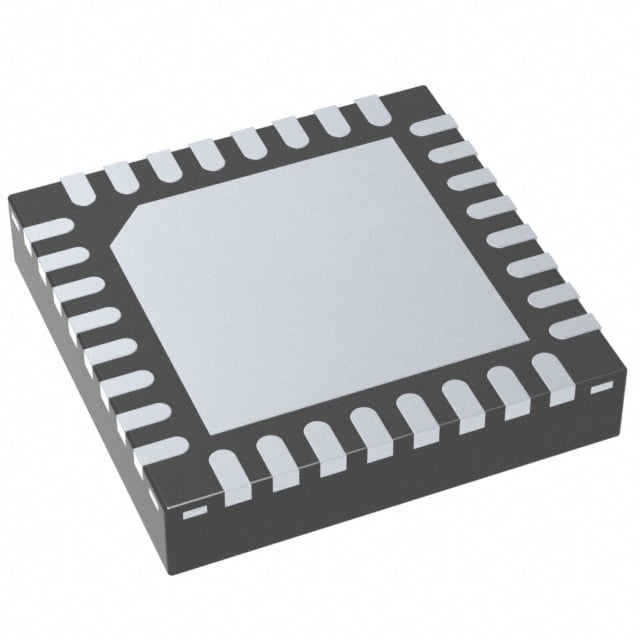

DRV8306HRSMR TI Motor Driver | 32-VQFN (4x4) | 5V-60V, 1.5A Gate Drive

Product Overview

The DRV8306HRSMR is a three-phase gate driver IC from Texas Instruments, designed for brushless DC (BLDC) motor control applications. It integrates three half-bridge gate drivers capable of driving high-side and low-side N-channel MOSFETs. The device operates from a supply voltage range of 5V to 60V and provides up to 1.5A peak gate drive current. It features a serial peripheral interface (SPI) for configuration and diagnostics, as well as integrated protection features including overcurrent, overtemperature, and undervoltage lockout. The compact 32-VQFN (4x4 mm) package makes it suitable for space-constrained designs.

Detailed Technical Specifications

Key Features

• Three-phase gate driver for BLDC motors
• Wide supply voltage range: 5V to 60V
• High gate drive current: 1.5A source / 2A sink
• SPI interface for flexible configuration and diagnostics
• Integrated protection: overcurrent, overtemperature, undervoltage lockout, and shoot-through prevention
• Adjustable dead time
• Low-power sleep mode
• Compact 32-VQFN (4x4 mm) package

Target Applications

• 5G base station cooling fans
• Automotive dashboard blowers
• Industrial pump and fan drives
• Power tools
• Robotics
• Home appliances (e.g., vacuum cleaners, washing machines)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for DRV8306HRSMR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
