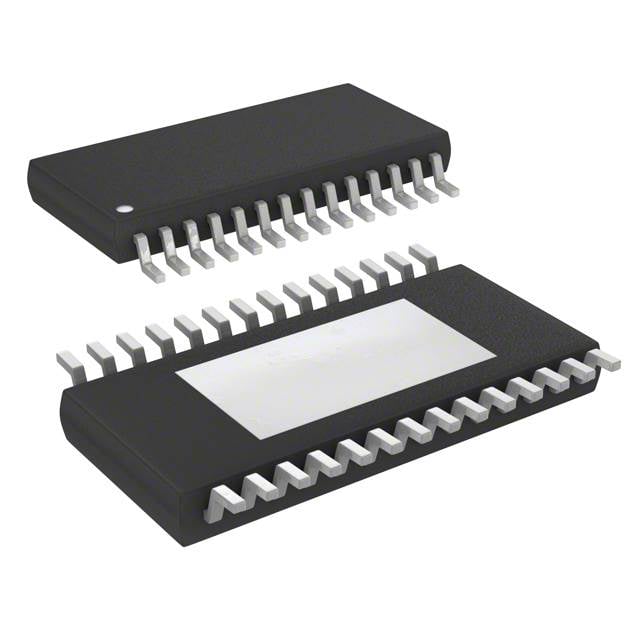

DRV8426EPWPR TI Stepper Motor Driver | 28-HTSSOP | 2.5A, 4.5-33V

Product Overview

The DRV8426EPWPR is a dual-bridge motor driver from Texas Instruments, designed for driving two stepper motors or four brushed DC motors. It integrates N-channel power MOSFETs with a low RDS(on) of 0.5Ω per FET, enabling high efficiency and compact design. The device operates from a supply voltage range of 4.5V to 33V and can deliver up to 2.5A peak per bridge. It features advanced current regulation, microstepping for stepper motors, and protection functions including overcurrent, overtemperature, and undervoltage lockout. The 28-HTSSOP package with PowerPAD ensures excellent thermal performance.

Detailed Technical Specifications

Key Features

• Dual H-bridge motor driver for stepper or brushed DC motors
• Low RDS(on) for high efficiency
• Integrated current sensing and regulation
• Microstepping up to 1/32 step
• Automatic decay mode selection
• Protection: overcurrent, overtemperature, undervoltage, and fault indication
• Low-power sleep mode

Target Applications

• 3D printers (e.g., Creality Ender-3)
• CNC routers (e.g., Shapeoko)
• Robotics (e.g., robotic arms, AGVs)
• Industrial automation (e.g., conveyor belts, pick-and-place machines)
• Medical equipment (e.g., infusion pumps, patient positioning)
• Office automation (e.g., printers, scanners)
• 5G base station antenna tilt control
• Automotive dashboard stepper motors

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for DRV8426EPWPR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
