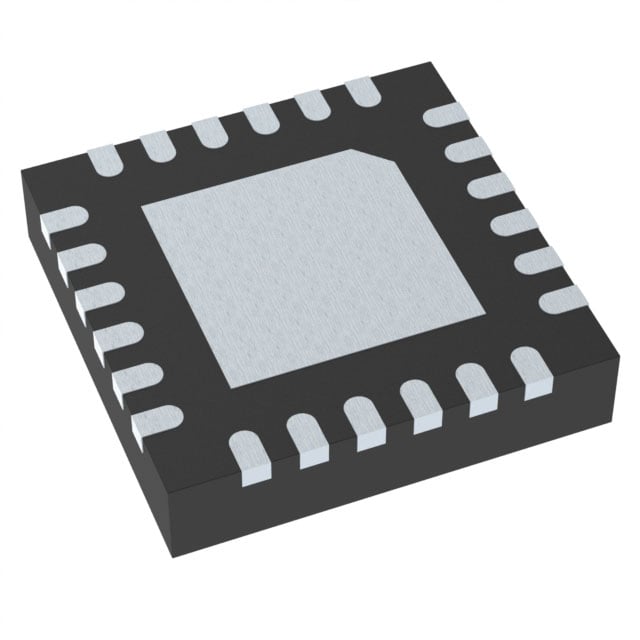

DRV8434AQWRGERQ1 TI Stepper Motor Driver | 24-VQFN(4x4) | 2.5A, 32V

Product Overview

The DRV8434AQWRGERQ1 is a automotive-grade, dual H-bridge stepper motor driver from Texas Instruments. It integrates two N-channel power MOSFET H-bridges, current sensing, and protection circuitry. Designed for bipolar stepper motors, it delivers up to 2.5A peak current per bridge (with proper heat sinking) and operates from 4.5V to 32V supply voltage. The device supports microstepping up to 1/256 step, providing smooth motion and high positional accuracy. It features a simple STEP/DIR interface, making it easy to control with a microcontroller. The 24-VQFN (4x4) package is compact and suitable for space-constrained automotive and industrial applications.

Detailed Technical Specifications

Key Features

• Automotive AEC-Q100 qualified
• Dual H-bridge for bipolar stepper motors
• Advanced current regulation with smart tune technology
• Low RDS(on) for reduced power dissipation
• Integrated current sensing eliminates external sense resistors
• Stall detection and index output
• Spread spectrum clocking for low EMI
• Thermal shutdown and fault reporting

Target Applications

• Automotive head-up display (HUD) actuator
• Dashboard gauge stepper motors
• HVAC vent control
• Headlamp leveling
• Industrial valve control
• Robotic arm joint actuation
• 3D printer Z-axis and extruder
• 5G base station antenna tilt adjustment

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for DRV8434AQWRGERQ1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
