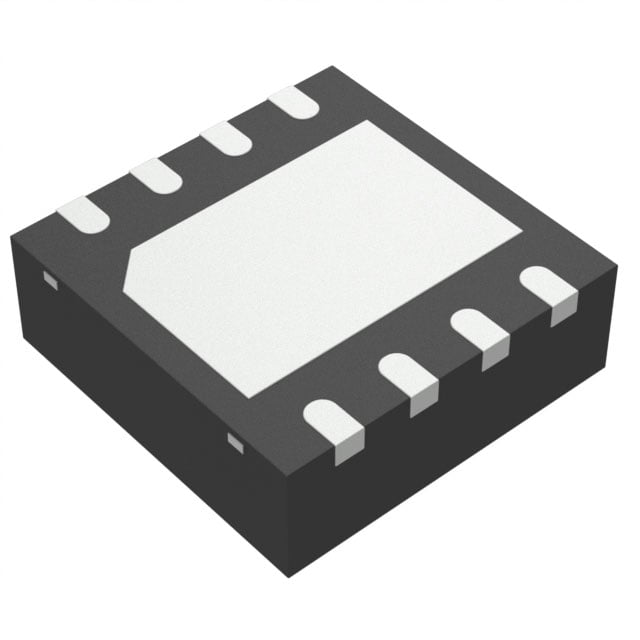

DRV8601DRBR TI Motor Driver | 8-SON(3x3) | 2.5A Peak, 1.2A RMS

Product Overview

The DRV8601DRBR from Texas Instruments is a high-performance H-bridge motor driver designed for driving brushed DC motors and solenoids. It operates from a single supply voltage range of 2.7V to 10.8V and can deliver up to 2.5A peak current and 1.2A RMS continuous current. The device integrates low RDS(on) power MOSFETs (typically 0.25Ω high-side and 0.15Ω low-side) to minimize power dissipation. It features a PWM interface for speed control and a current-sense output for torque regulation. The 8-pin SON (3x3 mm) package enables compact designs in space-constrained applications.

Detailed Technical Specifications

Key Features

• Integrated H-bridge with low RDS(on) MOSFETs
• PWM control interface for speed and direction
• Current-sense output for closed-loop torque control
• Overcurrent, overtemperature, and undervoltage lockout protection
• Small 8-pin SON package (3x3 mm) for space-saving designs
• Low sleep current (<1 μA)

Target Applications

• Brushed DC motor drives in 5G base station antenna tilt systems
• Automotive dashboard actuator control (e.g., vent position)
• Portable medical devices (e.g., infusion pump motors)
• Industrial valve and solenoid drivers
• Consumer robotics (e.g., toy motors)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for DRV8601DRBR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
