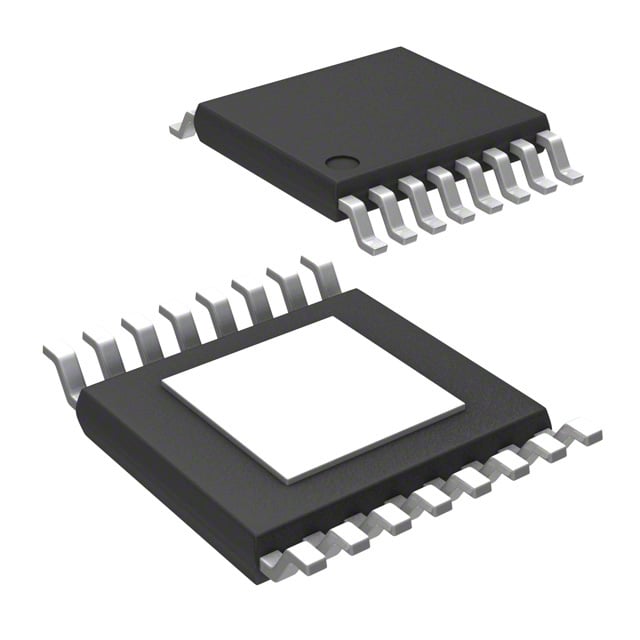

DRV8801PWPR TI Motor Driver | 16-HTSSOP | 2.5A, 36V

Product Overview

The DRV8801PWPR from Texas Instruments is a fully integrated brushed DC motor driver IC. It features a low RDS(on) output stage (0.73 Ω typical at 25°C) and can deliver up to 2.5 A peak current. The device operates from a supply voltage range of 8.2 V to 36 V, making it suitable for a wide variety of industrial and automotive applications. The DRV8801PWPR is available in a 16-pin HTSSOP package with an exposed thermal pad for enhanced heat dissipation.

Detailed Technical Specifications

Key Features

• Integrated N-channel power MOSFET H-bridge
• Low quiescent current (1.5 mA typical)
• PWM control interface for speed and direction
• Built-in current sensing and regulation
• Protection: overcurrent, overtemperature, undervoltage lockout
• Small footprint 16-HTSSOP package

Target Applications

• Brushed DC motor drives for industrial automation (e.g., conveyor belts, robotic arms)
• Automotive actuators (e.g., seat adjusters, window lifts)
• 5G base station cooling fans
• Dashboard gauge stepper motors
• Medical equipment pumps

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for DRV8801PWPR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
