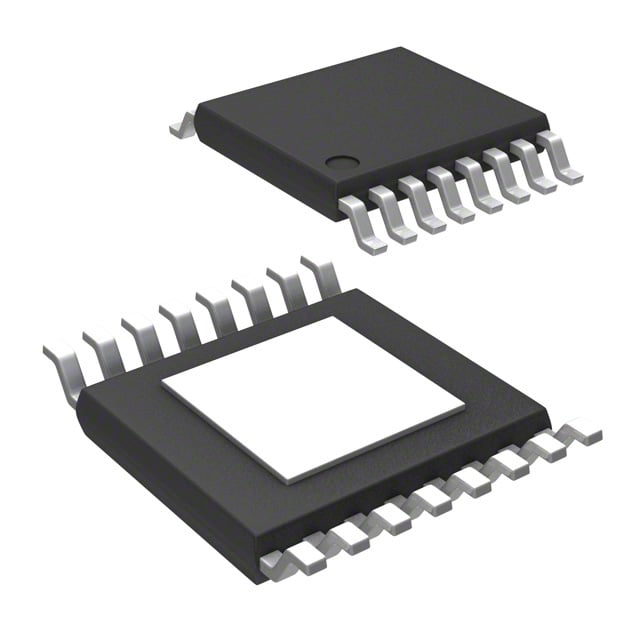

DRV8803PWPR TI Motor Driver | 16-HTSSOP | 2.5A, 36V, Quad DMOS

Product Overview

The DRV8803PWPR from Texas Instruments is a quad DMOS full-bridge driver designed for driving up to four DC motors or two stepper motors. It operates from a supply voltage range of 8.2V to 36V and can deliver up to 2.5A peak current per channel. The device integrates protection features including overcurrent, overtemperature, and undervoltage lockout. Housed in a compact 16-HTSSOP package, it is ideal for space-constrained applications requiring high efficiency and reliability.

Detailed Technical Specifications

Key Features

• Quad DMOS full-bridge driver for four DC motors or two stepper motors
• Wide supply voltage range: 8.2V to 36V
• High output current: 2.5A peak per channel
• Low RDS(on) for reduced power dissipation
• Integrated protection: overcurrent, overtemperature, undervoltage lockout
• Simple parallel interface for independent motor control
• Small 16-HTSSOP package with exposed pad for thermal management

Target Applications

• 5G base station antenna tilting and beam steering
• Automotive dashboard stepper motors for gauge clusters
• Industrial automation: conveyor belt drives, robotic arms
• Medical equipment: infusion pumps, diagnostic devices
• Office automation: printers, scanners, copiers

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for DRV8803PWPR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
