DRV8817DAP TI Stepper Motor Driver | 2.5A, 8-45V, Microstepping

Product Overview

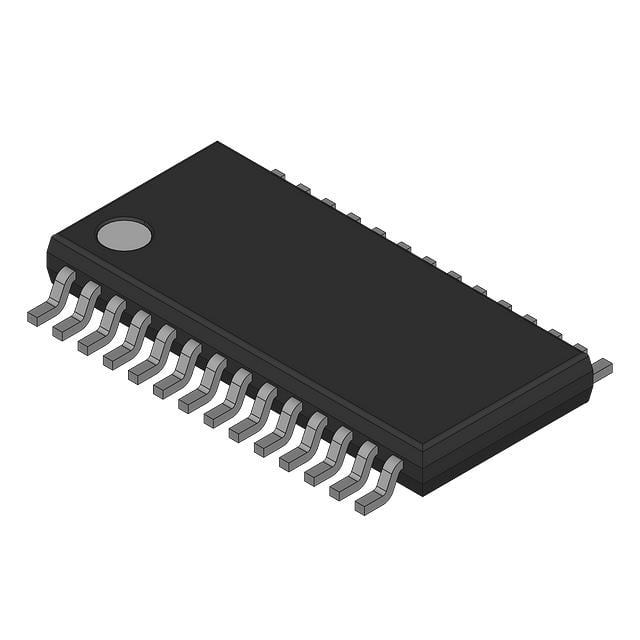

The DRV8817DAP from Texas Instruments is a dual-bridge motor driver IC designed for bipolar stepper motors and brushed DC motors. It integrates two N-channel power MOSFET H-bridges, current sensing, and protection circuitry. The device operates from 8V to 45V supply voltage and can deliver up to 2.5A peak current per bridge. With microstepping capability up to 1/32 step, it enables smooth and precise motor control. The DRV8817DAP is available in a HTSSOP-28 package with exposed pad for thermal dissipation.

Detailed Technical Specifications

Key Features

• Dual H-bridge for bipolar stepper or dual brushed DC motors
• Low RDS(on) for high efficiency
• Integrated current sensing with adjustable current regulation
• Microstepping for smooth motion
• Protection: overcurrent, overtemperature, undervoltage lockout
• Small package with thermal pad

Target Applications

• 3D printers (e.g., Creality Ender-3)
• CNC routers (e.g., Shapeoko)
• Robotics (e.g., robotic arms, AGVs)
• Textile machines (e.g., embroidery machines)
• Office automation (e.g., printer paper feed)
• Industrial automation (e.g., conveyor belt control)
