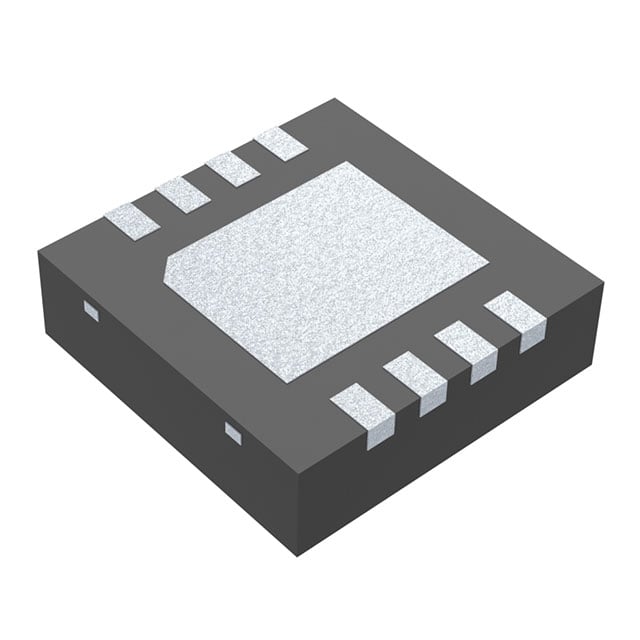

DS25BR120TSD/NOPB TI LVDS Buffer | 8-WSON (3x3) | 3.125 Gbps, 1.8V

Product Overview

The DS25BR120TSD/NOPB is a high-speed LVDS buffer from Texas Instruments, designed for signal conditioning and repeater applications. It supports data rates up to 3.125 Gbps and operates from a single 1.8V supply. The device is housed in a compact 8-WSON (3x3 mm) package, making it ideal for space-constrained designs. It features differential inputs and outputs with LVDS signaling, providing low jitter and high noise immunity.

Detailed Technical Specifications

Key Features

• Supports data rates up to 3.125 Gbps
• Single 1.8V supply operation
• Low jitter: 0.5 ps RMS typical
• Low power consumption: 50 mW typical
• Flow-through pinout for easy PCB layout
• Industrial temperature range: -40°C to +85°C
• Small 8-WSON (3x3 mm) package

Target Applications

• 5G base station backplane signal conditioning
• Automotive dashboard display interfaces
• High-speed data acquisition systems
• Medical imaging equipment (e.g., ultrasound)
• Industrial camera links
• Network switches and routers

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for DS25BR120TSD/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
