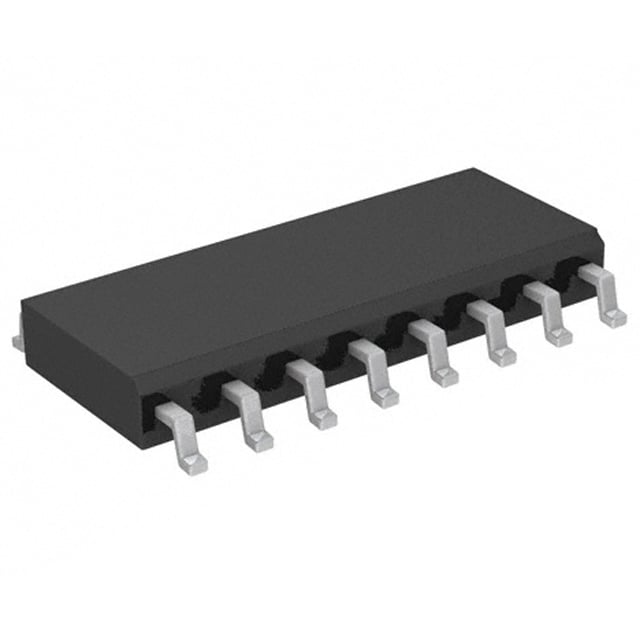

DS90LV047ATM/NOPB TI LVDS Driver | 16-SOIC | 400 Mbps, 3.3V

Product Overview

The DS90LV047ATM/NOPB is a high-speed LVDS driver from Texas Instruments, designed for applications requiring low power consumption and high data rates. It features four differential line drivers with a typical output voltage swing of 350 mV into a 100-ohm load, supporting data rates up to 400 Mbps. The device operates from a single 3.3V supply and is offered in a 16-pin SOIC package. Its flow-through pinout simplifies PCB layout, making it ideal for high-speed signal transmission in noisy environments.

Detailed Technical Specifications

Key Features

• Low-voltage differential signaling (LVDS) with 350 mV swing
• High data rate: 400 Mbps
• Low power consumption: 40 mW per channel typical
• Flow-through pinout for easy PCB routing
• Single 3.3V supply operation
• Industrial temperature range: -40°C to +85°C
• Compatible with ANSI/TIA/EIA-644 standard

Target Applications

• 5G base station backplane interconnects
• Automotive dashboard display links
• Industrial camera data transmission
• Medical imaging equipment
• High-speed data acquisition systems
