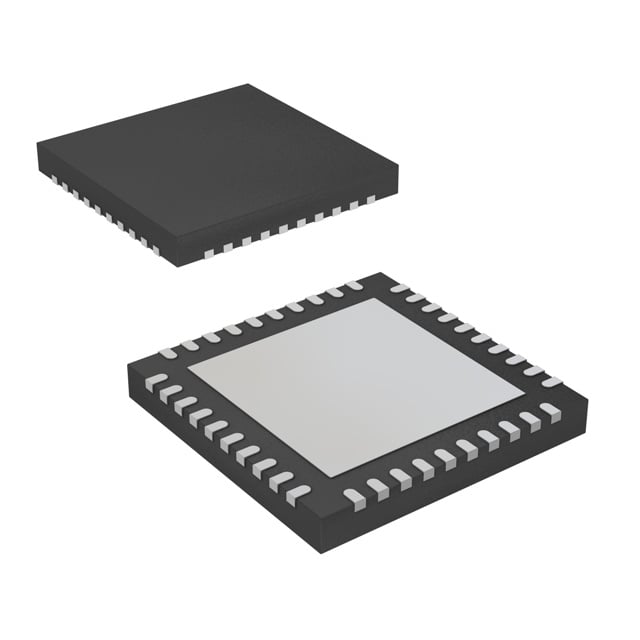

DS90UB927QSQX/NOPB TI Serializer | 40-WQFN (6x6) | 5-65MHz, 14-bit LVDS

Product Overview

The DS90UB927QSQX/NOPB is a high-speed serializer from Texas Instruments, designed for automotive and industrial applications requiring reliable video data transmission over a single coaxial cable or twisted-pair wire. It converts 14-bit parallel LVDS data into a serialized stream, supporting pixel clock frequencies from 5 MHz to 65 MHz. The device is part of the FPD-Link III family, offering robust EMI performance and low power consumption. Housed in a compact 40-WQFN (6x6 mm) package, it is ideal for space-constrained designs.

Detailed Technical Specifications

Key Features

• Supports 14-bit LVDS input with 7:1 serialization
• Pixel clock range from 5 MHz to 65 MHz
• Integrated spread spectrum clocking for EMI reduction
• Single differential pair output (FPD-Link III)
• Built-in DC balance coding for AC-coupled cables
• Low power consumption: 150 mW typical
• Wide operating temperature range: -40°C to +105°C
• Small 40-WQFN package (6x6 mm)
• Compatible with DS90UB928Q deserializer

Target Applications

• Automotive camera systems (e.g., rearview cameras, surround-view systems)
• Infotainment displays (e.g., dashboard screens, head-up displays)
• Industrial machine vision cameras
• Security and surveillance cameras
• Medical imaging equipment
• 5G base station monitoring cameras

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for DS90UB927QSQX/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

DS90UB927QSQX/NOPB 是德州儀器（TI）推出的高速串行器，專為需要通過單根同軸電纜或雙絞線進行可靠視頻數據傳輸的汽車和工業應用而設計。它將14位並行LVDS數據轉換為串行流，支持5 MHz至65 MHz的像素時鐘頻率。該器件屬於FPD-Link III系列，具有出色的EMI性能和低功耗。採用緊湊的40-WQFN（6x6 mm）封裝，非常適合空間受限的設計。

詳細技術參數

核心特性

• 支持14位LVDS輸入，7:1串行化
• 像素時鐘範圍5 MHz至65 MHz
• 集成展頻時鐘以降低EMI
• 單差分對輸出（FPD-Link III）
• 內置直流平衡編碼，支持交流耦合電纜
• 低功耗：典型值150 mW
• 寬工作溫度範圍：-40°C至+105°C
• 小型40-WQFN封裝（6x6 mm）
• 與DS90UB928Q解串器兼容

典型應用場景

• 汽車攝像頭系統（例如後視攝像頭、環視系統）
• 信息娛樂顯示屏（例如儀表板屏幕、抬頭顯示器）
• 工業機器視覺攝像頭
• 安防監控攝像頭
• 醫療成像設備
• 5G基站監控攝像頭

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 DS90UB927QSQX/NOPB 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
